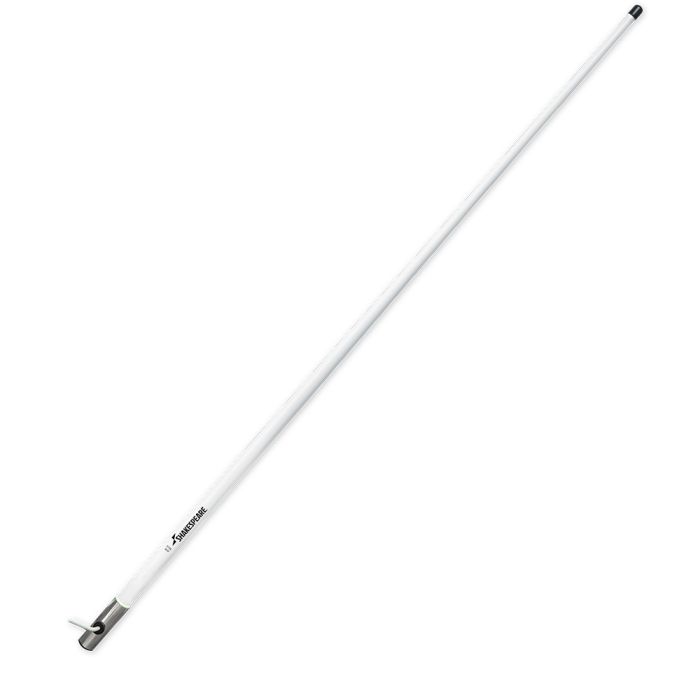

Shakespeare 5104 VHF 4' Antenna MPN: 5104

$71.99
Availability: Out of stock
SKU:
CWR-43463
Classic Style 5104 4' (1.2m) VHF Marine Band 3dBEnd-Fed with Matching StubFour-foot, 3dB antenna with a great selection of high-end features. Brass and copper elements for performance, plus a smooth...

Classic Style 5104
4' (1.2m) VHF Marine Band 3dB

End-Fed with Matching Stub

Four-foot, 3dB antenna with a great selection of high-end features. Brass and copper elements for performance, plus a smooth, high-gloss, polyurethane finish that won?t turn yellow in the sun. Superb value, and excellent performance in a great looking antenna.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1in-14 thread
  • Includes 15ft RG-58 cable, which can be cut to size, and a PL-259 connector
  • Suggested mount: Style 4187 or 5187 Ratchet Mount (each sold separately)
  • Smooth, durable, high gloss finish
  • One section


Classic 5104 Specifications

Band: VHF Marine Band
Antenna Gain: 3dB
Max. Input Power: 50W
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Chrome-plated brass
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259, not installed
Color/finish: White
Polarity: Vertical
Impedance: 50 Ohms
Shakespeare Limited Warranty: 2 years

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Ferrule Type: Chrome Plated
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 55"L WT: 2.1 lbs
  • UPC: 719441100896

Quick Guide (pdf)
