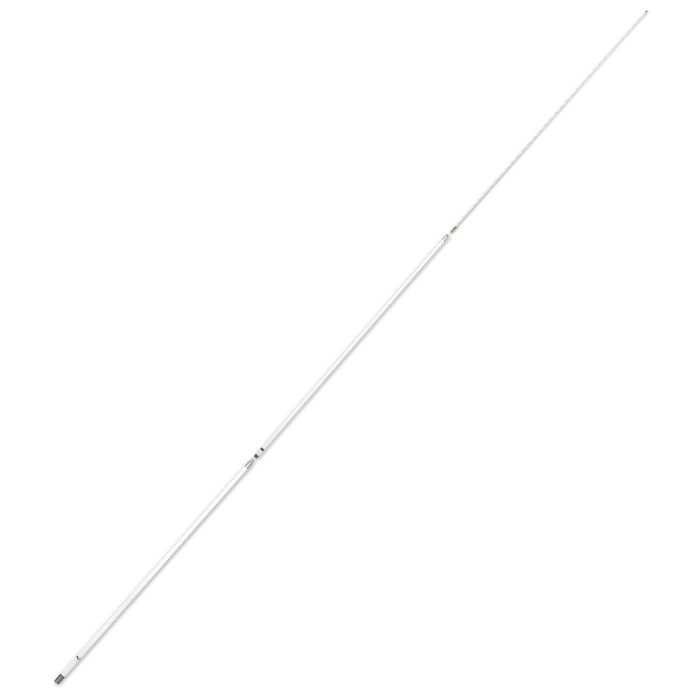

Shakespeare 393 23' Single Side Band Antenna MPN: 393
Shakespeare Style 393 SSB23' LENGTHWHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm...
Shakespeare Style 393 SSB
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.
- Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
- Three sections: Base 92"; Center 92"; Tip 92"
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency: | 2-30 MHz HF band with tuner |
Bandwidth: | Resonant frequency 10.8 MHz |
SWR: | N/A |
Impedance: | (Ohms): N/A |
Gain: | N/A |
Max Input (Watts): | 1000 |
DC Ground: | N/A |
Termination: | Side Termination |
Height (feet): | 23 |
Polarization: | Vertical |
Radiation pattern: | Omni-directional |
Specifications:
- Antenna Band: SSB
- Color: White
- Construction: Fiberglass
- Ferrule Type: Chrome Plated
- Length (Inches): 144"
- Box Dimensions: 3"H x 3"W x 96"L WT: 5.2 lbs
- UPC: 719441600075
