Shakespeare 5215-C-X 3' VHF Antenna MPN: 5215-C-X

$152.99
Availability: In stock
SKU:
CWR-10632
Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine36" LENGTH, 3dBEND-FED 1/2-WAVE STAINLESS STEEL WHIPSame as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.A favor...

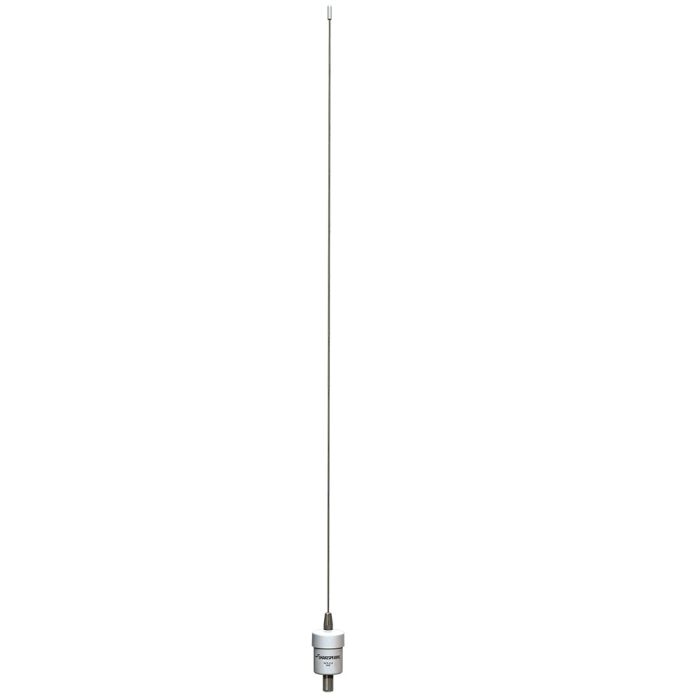

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

  • Hermetically sealed, tin-plated copper wire coil
  • Stainless steel body and whip
  • SO-239 connector
  • Includes 60' RG-8/X low-loss cable and PL-259 connectors.
  • Mount: Stainless steel "L" bracket supplied, for mast mounting
  • One section
  • Shakespeare Limited Warranty: 2 years

Technical Specifications:


Frequency:VHF Marine band
Bandwidth:7 MHz
SWR:1.5:1 @ 156.8 MHz
Impedance:(Ohms): 50
Gain:3 dB
Max Input (Watts):50
DC Ground:NO
Termination:60' RG-8X cable
Height (feet):3'
Polarization:Vertical
Radiation pattern:Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: Stainless
  • Construction: Stainless Steel
  • Length (Inches): 36"
  • Box Dimensions: 4"H x 4"W x 44"L WT: 4.2 lbs
  • UPC: 719441100155

Quick Guide (pdf)
