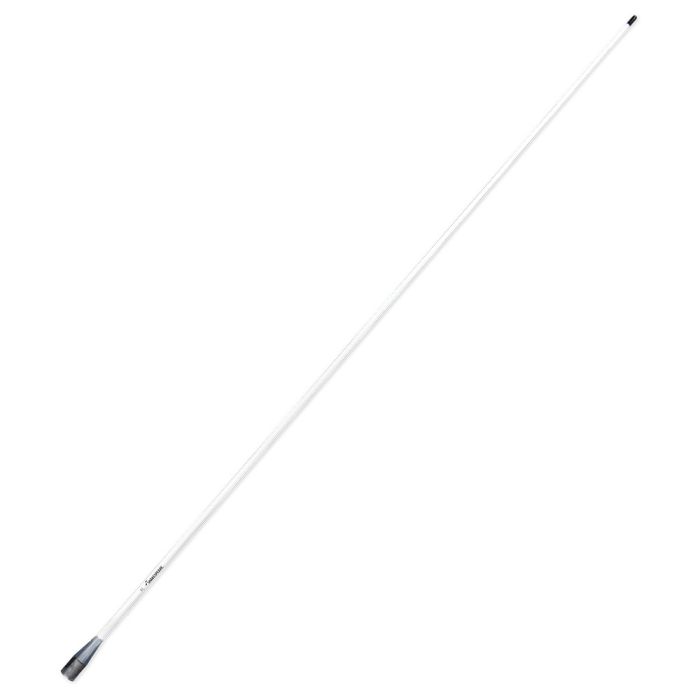

Shakespeare 396-1 5' VHF Antenna
Style 396-1 VHF 3dB Center-fed 1/2-wave coaxial sleeve Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels. Brass and copper elements Chrome-plated brass ferrule with standard 1-14 thread Includes 15' RG-58 cable and a PL-259 connector Suggested mount: Style 4187 Ratchet Mount One section Technical... Read More
In stock
- SKU
- WTR-10597
Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 SWR): 5 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance | (Ohms): 50 |
| Gain: | 3 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15' RG-58 cable |
| Height (feet): | 5 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Ferrule Type: Chrome Plated
- Length (Inches): 60"
- Box Dimensions: 3"H x 3"W x 63"L WT: 2.9 lbs
- UPC: 719441100018
Quick Guide (pdf)
