Digital Antenna Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni w/Bracket MPN: 1673-PW

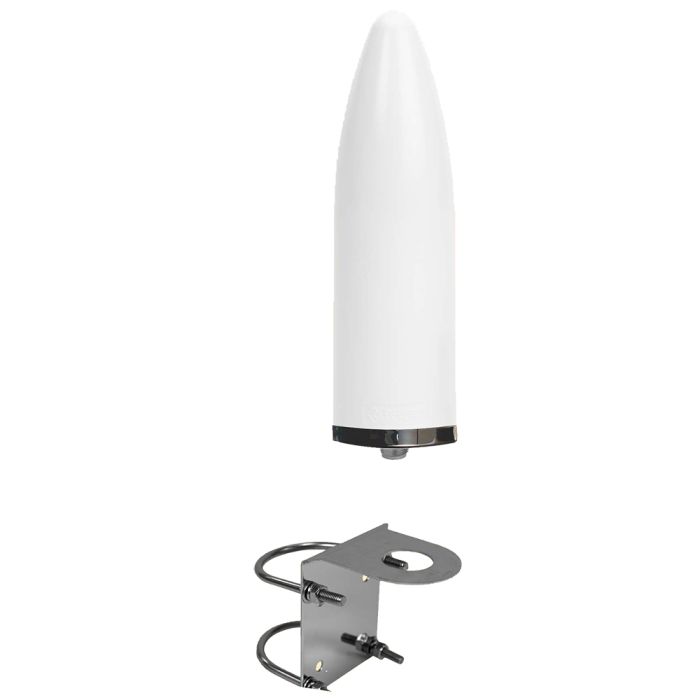

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

Applications:

• Commercial
• Recreational
• Government
• Marine
• Land

Features:

• Maximum power for 4G, 5G, WiFi signals
• 9dBi omni-directional gain
• Rugged UV stable polyurethane finish
• Foam filled to withstand extreme vibrations
• 316 stainless steel base
• Includes L bracket & U-Bolts
• Weatherproof N female connector
• 5-year warranty

Specifications:

• Radiation Pattern Omni-Directional
• Gain 9dBi
• Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
• Cable Not Included
• Impedance 50 ohms
• Max Input Power 50 watts
• Exterior Finish White polyurethane high gloss UV stable
• Dimensions 8.875" L x 2.375" OD (225 x 60 mm
• Weight 15 oz
• RF Connector N type female
• Installation Stainless Steel L bracket for pole/wall
• Elements Copper - Hand soldered
• Polarization Vertical
• Wind Rating >160KPH
• Operating Temp 30º F to +175º F
• Warranty 5 Years
• Compliance RoHS compliant

Specifications:

• Box Dimensions: 3"H x 4"W x 13"L WT: 1.15 lbs
• UPC: 839494004863
