Pacer 22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack MPN: TE18-56R-25

$17.13
Availability: In stock
SKU:
CWR-104967
22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 PackRing terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the con...

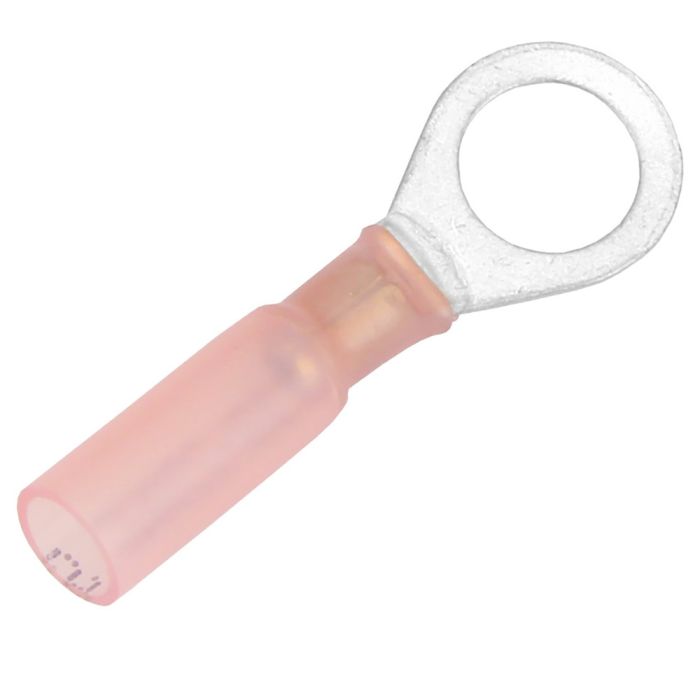

22-18 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users don't need to worry about the connector coming off. The ring fits over a stud or screw and doesn't pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isn't always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

  • Protects terminations from water, condensation, salt spray, and corrosion
  • Added vibration protection in rugged environments
  • Provides strain relief
  • Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
  • Conforms to automotive manufacturers’ specifications for wiring repairs
  • Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

  • UL
  • CSA
  • RoHS

Characteristics:

  • Shrink Ratio: Approx. 3:1 at 135 °C
  • Operating Temp: -55 °C - 125 °C
  • Vol. Resistivity: 1015 Ohm-cm3
  • Dielectric Strength: 900-V/mil
  • Voltage Rating: 600-V

Specifications:

  • Wire: 22-18 AWG
  • Stud Size: 5/16”
  • Terminal Pad Width: 0.47”
  • Package Size: 25

Specifications:

  • Gauge: 22-18 AWG
  • Heat Shrink: Yes
  • Package Qty: 25
  • Post Size: 5/16"
  • Type: Heat Shrink
  • Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs
  • UPC: 840248206464
