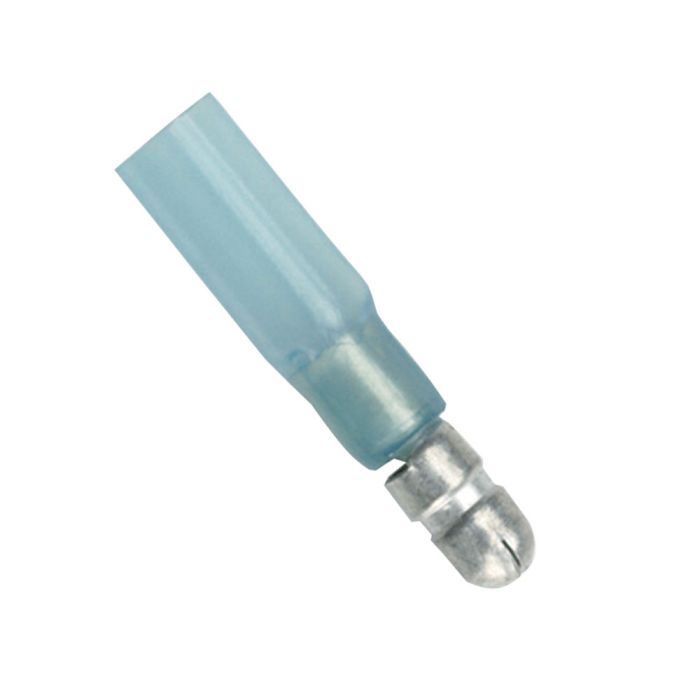

Ancor 16-14 Male Heatshrink Snap Plug - 100-Pack MPN: 319999

16-14 Male Heatshrink Snap Plug - 100-Pack

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 16-14/.197

• Size: 3-5mm/5mm

• Gender: Male

• Qty/Pkg: 100

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Heat Shrink: Yes
  • Gauge: 16-14 AWG
  • Type: Snap Plugs
  • Package Qty: 100
  • Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs
  • UPC: 091887807752
