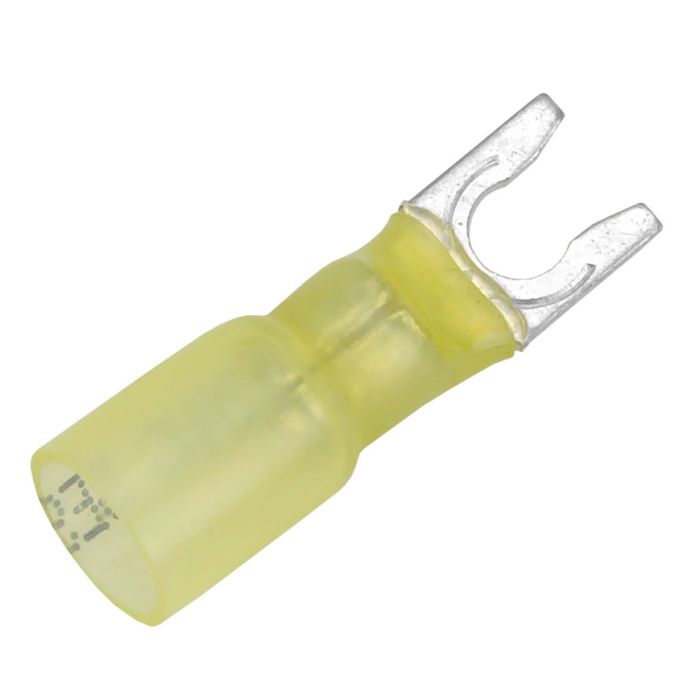

Pacer 12-10 AWG Heat Shrink Spade Terminal - #10 Stud Size - 25 Pack MPN: TE10-10SLF-25

$27.41
Availability: Out of stock
SKU:
CWR-99346
12-10 AWG Heat Shrink Spade Terminal - #10 Stud Size - 25 PackFork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and off...

12-10 AWG Heat Shrink Spade Terminal - #10 Stud Size - 25 Pack

Fork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens.

Features:

  • High-quality tinned copper for corrosion resistance
  • Efficient installation
  • Creates solid connections
  • Meets multiple compliances

Benefits:

  • Environmentally sealed
  • Easy to Install
  • Built for durability
  • Long-lasting

Specifications:

  • Color: Yellow
  • Wire AWG: 12-10 AWG
  • Stud Size: #10
  • Terminal Pad Width (inch): 0.39”
  • Package Size: Twenty-five included

Specifications:

  • Gauge: 12-10 AWG
  • Heat Shrink: Yes
  • Package Qty: 25
  • Post Size: #10
  • Type: Spade connectors
  • Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs
  • UPC: 840248206525

Quick Guide (pdf)
