Newmar 24-12-3 DC Converter MPN: 24-12-3

$178.99
Availability: Out of stock
SKU:
CWR-102300

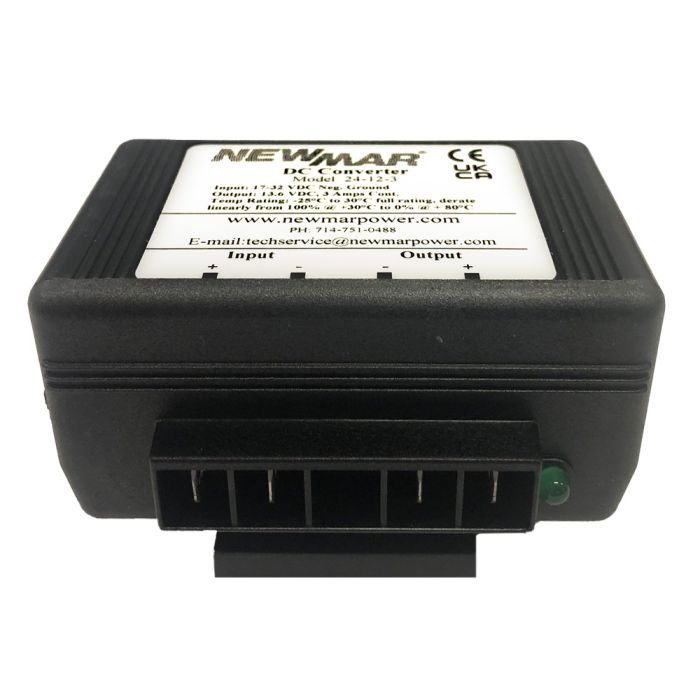

24-12-3 DC ConverterConvert 17-32 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground ap...

24-12-3 DC Converter

Convert 17-32 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)

Features:

  • Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating
  • The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components
  • Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments

Numerous Converter and Load Protection Circuits:

  • Current limiting
  • Automatic thermal shutdown
  • Short circuit proof
  • Reverse polarity
  • Overvoltage protection
  • Carries CE mark

Specifications:

  • Input Voltage: 17-32
  • Output Voltage: 13.6
  • Output Amps (Intermittent): 3
  • Output Amps (Continuous): 3
  • Case Size (H x W x D): 3.5 x 3.5 x 1.75 inches (8.9 x 8.9 x 4.5 centimeters)
  • Weight: 1 lb. (.45 kg)
  • Output: 13.6 VDC (internally adjustable 12.6 -14.5)
  • Ripple: 150 mV P-P maximum
  • Regulation: 1% Line/Load
  • Switching Frequency: 40 kHz
  • Efficiency: 85% – Typical.
  • Isolation: Output/Chassis; Input/chassis: 250 VDC

Duty Cycle Ratings*:

  • Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating.
  • Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time
  • Idle Current: Less than 100 mA (including power “ON” light)

Operating Temp Specifications:

  • 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C.
  • Thermal shutdown @ 70 degrees C Case Temperature
  • Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C

Mechanical Specifications:

  • Powder-coated aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • Conformal coated PC board

Options:

  • Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
