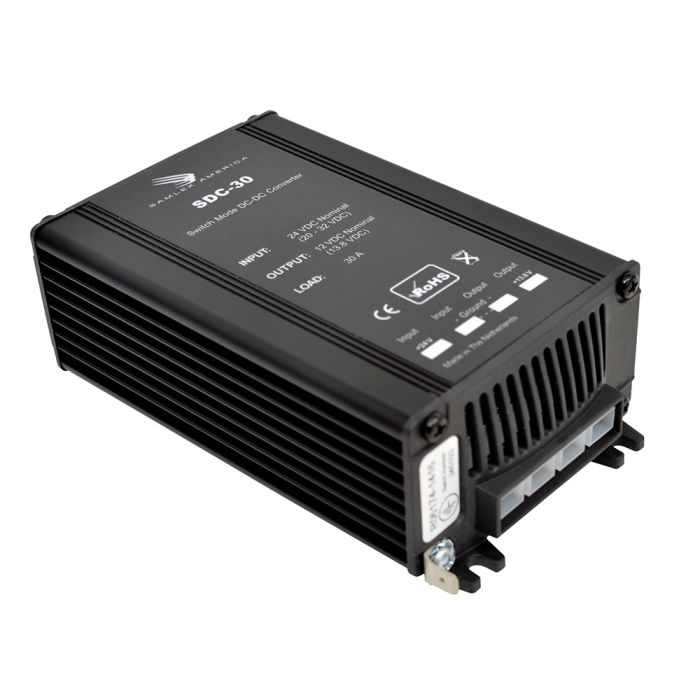

Samlex 30A Non-Isolated Step-Down 24VDC-12VDC Converter MPN: SDC-30

30A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Cycle by cycle current limiting circuit
• Overvoltage protection
• Short circuit protection

Specifications:

• Input: 20-32 VDC
• Output: 13.8 VDC
• Amps: 30 Amps
• Weight: 1.2 (lbs)
• Weight: 0.54 (kg)
• Dimensions: 6 x 3.5 x 1.9 (in)
• Dimensions: 15.2 x 8.9 x 4.8 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
