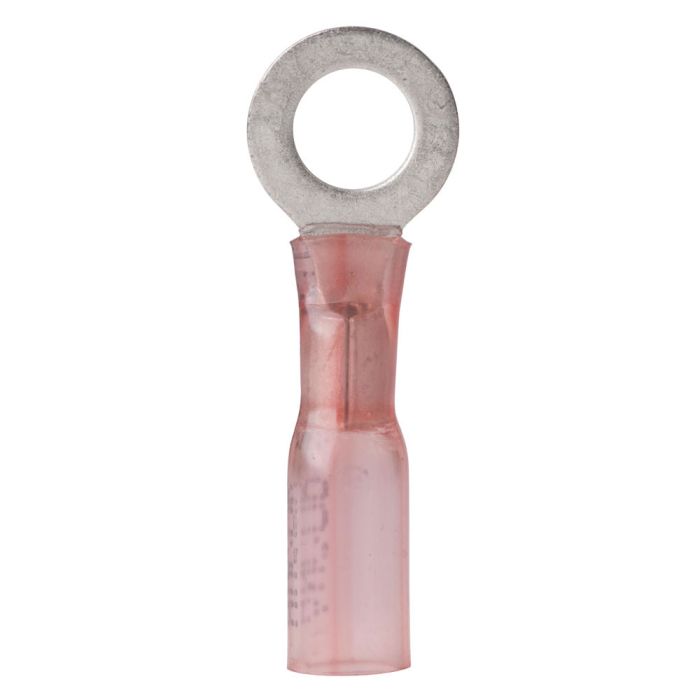

Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack MPN: 310203

22-18 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

Gauge Size: 22-18
Screw Size: #8
Quantity: 3

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing

• Shrinks to form a water tight seal and the ultimate vibration and strain relief.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 22-18

• mm: 0.3-0.8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gauge: 22-18 AWG
• Type: Ring Terminals
• Post Size: #8
• Package Qty: 3
• Heat Shrink: Yes
• Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs
• UPC: 091887316261

Quick Guide (pdf)
