Xantrex Automatic Generator Start SW2012 SW3012 Requires SCP MPN: 809-0915

Xantrex system components expand power system functionality

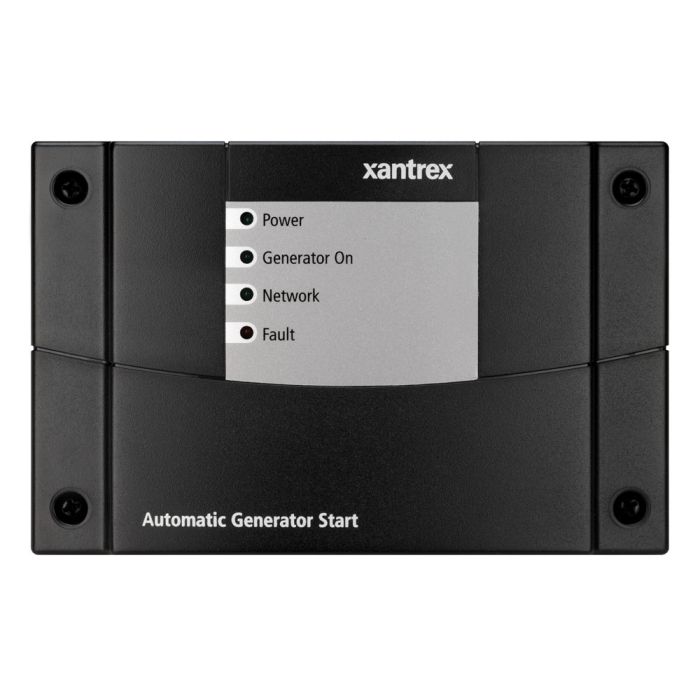

The Automatic Generator Start (AGS) is a Xanbus Enabled device that can automatically activate a generator to provide an MS or RS Inverter/Charger with power to recharge depleted batteries or assist with heavy loads. Compatible with popular generators, the AGS adds intelligence to power management and eliminates time spent monitoring batteries and inverter loads.

The AGS can be customized to suit each users preferences. A user can define whether the generator should be activated by low battery voltage, battery state of charge, thermostat operation, or load size on the inverter. A Quiet Time setting prevents the generator from starting at inconvenient times like nightfall. LED lights display the status of the AGS, while all user defined settings are programmed through the System Control Panel.

Product Features

• Designed for use with the System Control Panel and MS and RS Inverter/Chargers

• Comprehensive triggers

• User programmable quite times and generator start & stop settings

• Built-in emergency shutdown

• Compatible with Onan, Kohler, Westerbeke, Northern Lights, Generac, and Powertech generators

• Meets UL458 Marine and RV standards

• Xanbus Enabled

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Box Dimensions: 3"H x 9"W x 11"L WT: 1.9 lbs
• UPC: 715535111984
