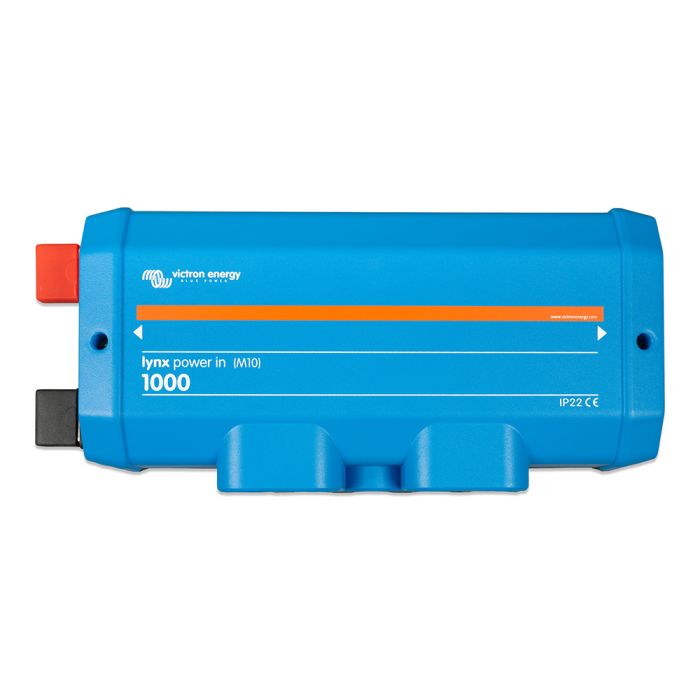

Victron Lynx Power-In w/M10 Terminals MPN: LYN020102010

$161.50
Availability: In stock
SKU:
CWR-101854
Lynx Power-In with M10 TerminalsThe Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads, or chargers and a ground connection. It is part of the Lynx Distribut...

Lynx Power-In with M10 Terminals

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads, or chargers and a ground connection. It is part of the Lynx Distribution System. This version is a M10 busbar.

Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.

The Lynx Distribution System Consists of the Following Parts

Lynx Power In

A positive and negative busbar with four batteries or DC equipment connections.

Lynx Distributor

A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions.

Lynx Shunt VE.Can

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Lynx Smart BMS

For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.

It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

  • Box Dimensions: 4"H x 8"W x 16"L WT: 5.3 lbs
  • UPC: 8719076057581

Quick Guide (pdf)
Owner's Manual (pdf)
