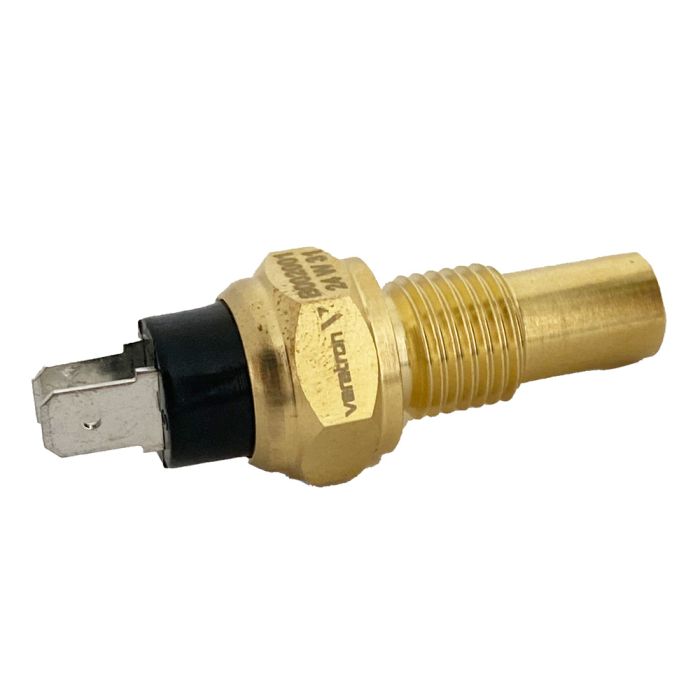

Veratron Water Temperature Sensor - M16x1.5 Thread - 120C Temp Range MPN: B002002

Water Temperature Sensor - M16x1.5 Thread - 120°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

• Function - Oil temperature, coolant temperature
• Length - 28.5mm (1-1/8")
• Thread - M16x1.5
• Calibration - 120°C
• Measurement Range - 120°C
• Output Signals - Resistive
• IP67
• Insulated ground pin
