Veratron Water Temperature Sensor - M14x1.5 Thread - 120C Temp Range
Water Temperature Sensor - M14x1.5 Thread - 120°C Temp Range These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications. Features: Function - Oil temperature, coolant temperature Length -... Read More
In stock
- SKU
- WTR-106072

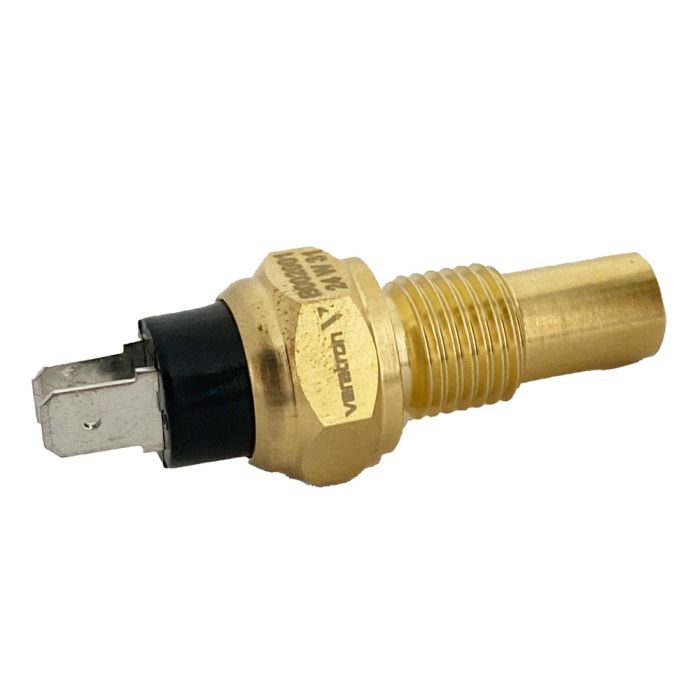

Water Temperature Sensor - M14x1.5 Thread - 120°C Temp Range
These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.
Features:
- Function - Oil temperature, coolant temperature
- Length - 28.5mm (1-1/8")
- Thread - M14x1.5
- Calibration - 120°C
- Measurement Range - 120°C
- Output Signals - Resistive
- IP67
- Insulated ground pin
Specifications:
- Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs
Quick Guide (pdf)
