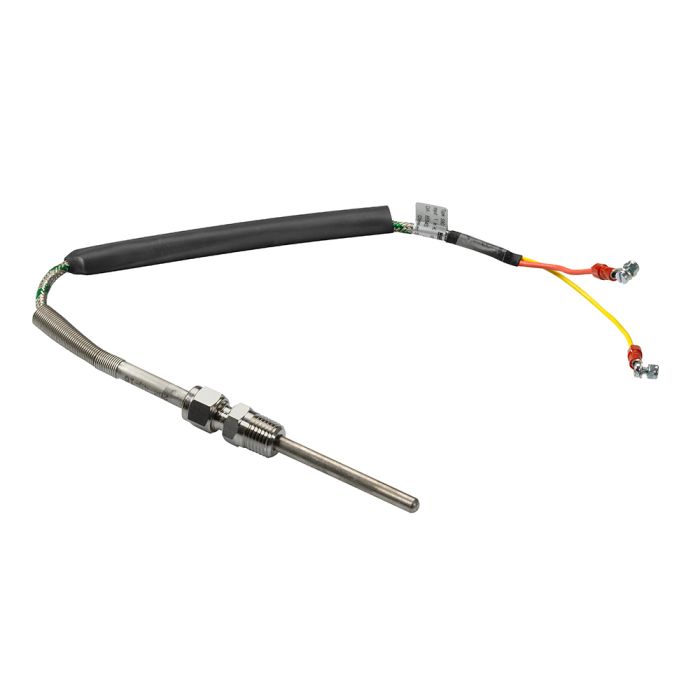

Veratron Pyrometer Sensor - 100-900C/250-1650F MPN: N03-320-264

Pyrometer Sensor - 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

• Plug-and-Play installation and configuration
• NMEA 2000® certified

Technical Specifications:

• Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
• Input Signal - LIN bus
• Operating Voltage - 6 - 24 VDC
• Pyrometer Sensor
• Thermocoupler Element
• Measurement Range - 100-900°C/250-1650°F
• Communication - Analog
• Signal Output - 0 - 37 MV TC
• Sensor Connector - Ring Tongue
• Thread - R 1/4" Male
• Warning Contact - None
• Connector Type - Kabeloog
• Sender element length + thread (L) - Adjustable maximal 60 mm
• Sensor diameter - 6 mm
• Torque - 20 Nm

*Sold as an Individual

Specifications:

• Diameter (mm): N/A
• Diameter (Inches): N/A
• Color: Black
• Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
