Uflex MD32T w/Tilt MasterDrive Retrofit Kit Steering System MPN: MD32T

MD32T with Tilt MasterDrive Retrofit Kit Steering System

Features:

• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel
• Automatically reverts to manual mode in case of power loss
• High efficiency, low Amp draw
• The system always running permits immediate control in any sea conditions Equipped with safety switch ON/OFF (SMART BUTTON)
• Can be used on dual station installations Suitable for use with autopilot
• Low noise
• Voltage: 12VDC
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)

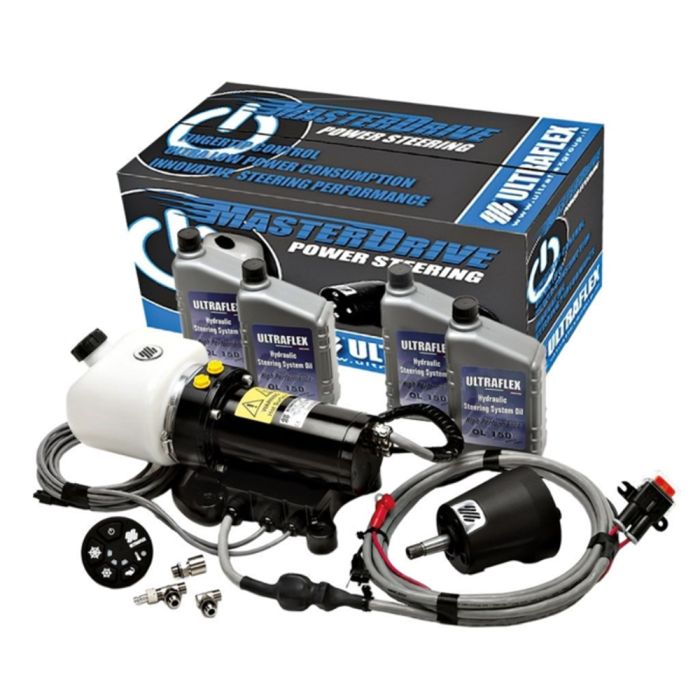

Package Includes

 1 UH Master Helm Pump

 1 UPMD Power Unit (15’ wiring harness included)

 1 UCMD User Interface

 1 UH32-T-X66 MasterDrive 32cc tilt mount helm with tilt mechanism for power steering.

 4 quarts OIL 15 Hydraulic oil

 1 Installation manual and fittings

Specifications:

• Box Dimensions: 21"H x 22"W x 24"L WT: 50.15 lbs
• UPC: 702755040132
