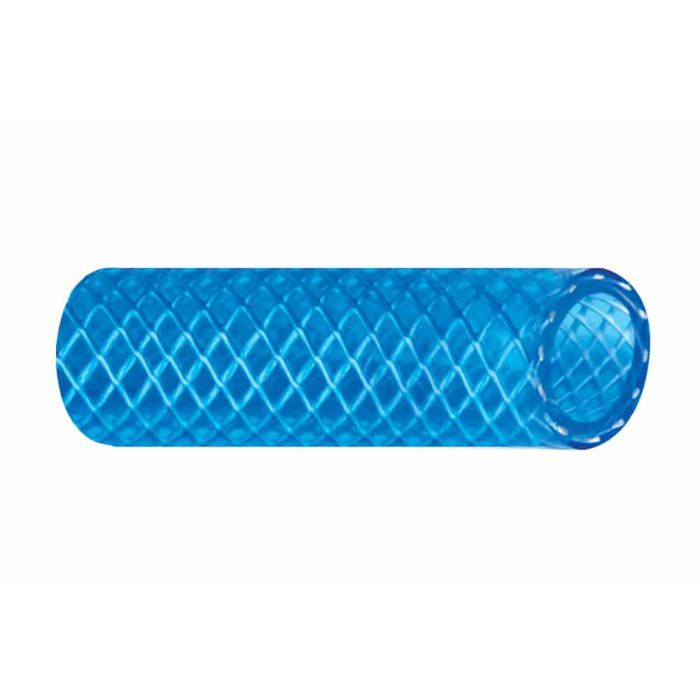

Trident Marine 3/4" x 50 Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue MPN: 165-0346

3/4" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).

Features:

• The Blue cover allows for easy identification of "Cold Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

• Tube & Cover: Clear FDA tube
• Color: Blue Transparent
• Reinforcement: Polyester
• Temperature Range: -18°F to 149°F (-28°C to 65°C)
• Length: 50’ (15.24m)

Specifications:

• Inner Diameter: (inch) 3/4" / (mm) 19
• Outer Diameter: (inch) 1 / (mm) 25.4
• Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
• Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

Specifications:

• Length (Feet): 50.0
• ID Diameter (inches): 3/4"
• Box Dimensions: 5"H x 18"W x 18"L WT: 11.6 lbs
• UPC: 704917023984
