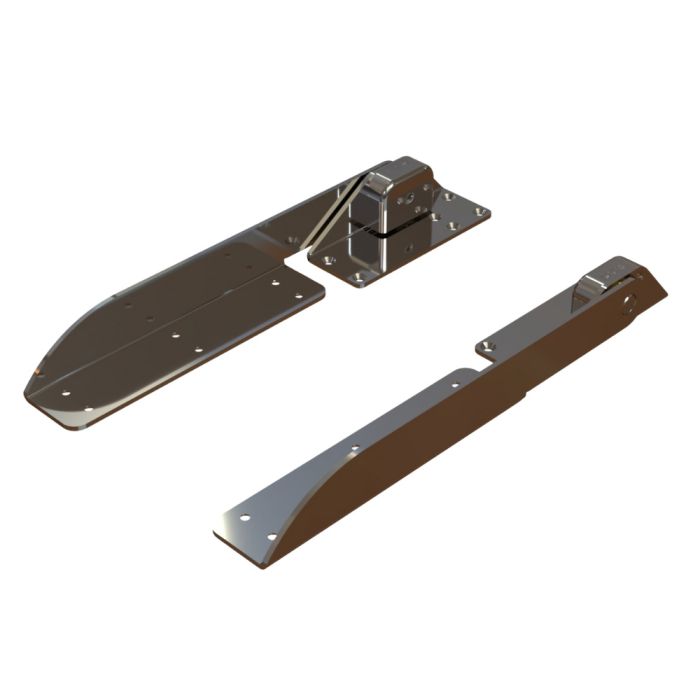

TACO Command Ratchet Hinge - 18-1/2" - 316 Stainless Steel Polished w/Hard Stop MPN: H25-0048

Command Ratchet Hinge - 18-1/2" - 316 Stainless Steel Polished with Hard Stop

Building upon the popularity of the H25-0023 heavy-duty Command Ratchet Hinge, this 18-1/2" hinge features a hard stop at 105º and is ideal for longer seat backs up to 22". This extended specialty hinge features one locking position at 62.5º and is perfect for sun pads, bolsters, and lounge backrests.

Features & Benefits:

• Single- or double-seat capacity
• Can be used for seat backs up to 22" long
• Compatible with cushions up to 4" thick
• Mounts above the deck
• One locking position at 62.5º
• Hard stop at 105°
• Polished Type-304 stainless steel
• Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for a pair
• 500-hour salt fog test
• Sold in pairs

Specifications:

• Length: 18-1/2"
• Width: 3"
• 5-year limited warranty

Specifications:

• Box Dimensions: 4"H x 4"W x 19"L WT: 10.6 lbs
