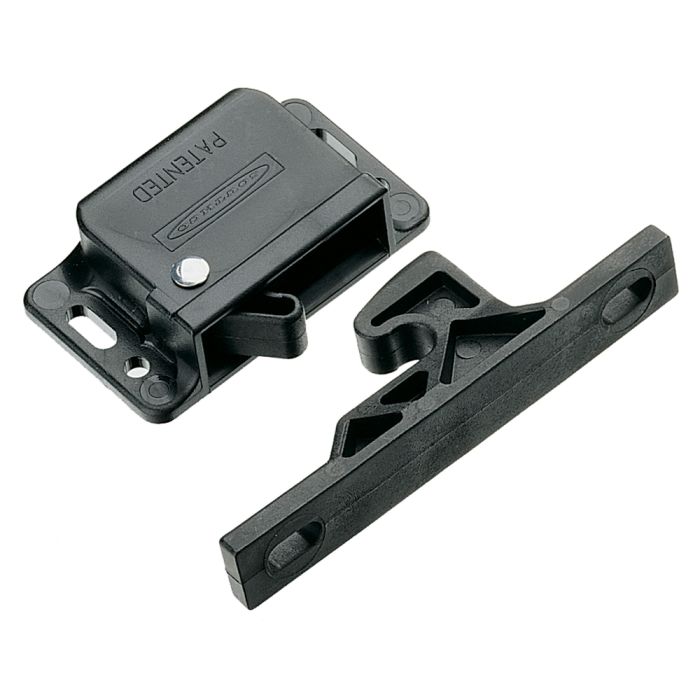

Southco Grabber Catch Latch - Side Mount - Black - Pull-Up Force 13N (3lbf) MPN: C3-803

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 13N (3lbf)

Features:

• Spring-loaded over-center latching
• One assembly includes catch and keeper
• Material and Finish: PC/ABS, black

Performance Details:

• Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF)
• Flammability rating: UL94-HB

Installation Notes:

• Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching.
• Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)

Specifications:

• Box Dimensions: 1"H x 2"W x 4"L WT: 0.2 lbs
• UPC: 817382010875
