Siren Marine PAM4 Wired DC Relay
[SM-ACC-DCRE]
PAM4 Wired DC Relay The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights. Dimensions: 1.5x0.75x1.19in (box) 11.3in (wire) Relay may be energized across a wide voltage range from 9VDC to 32VDC. Ideal for 12VDC and 24VDC circuits. 20mA operating current is constant across the operating range. Input... Read More
In stock
- SKU
- WTR-66687
$28.07
Free Shipping On Orders Over $99 Sitewide - U.S. Only

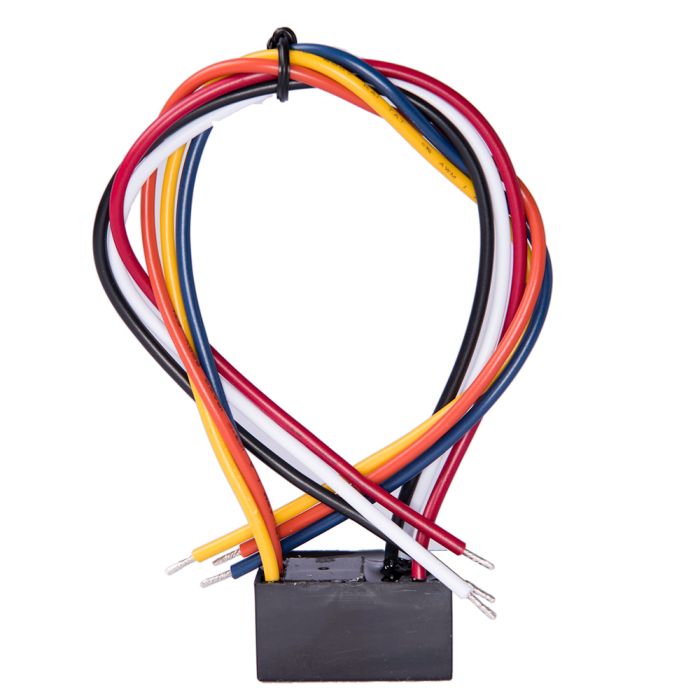

PAM4 Wired DC Relay
The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights.
- Dimensions: 1.5x0.75x1.19in (box) 11.3in (wire)
- Relay may be energized across a wide voltage range from 9VDC to 32VDC.
- Ideal for 12VDC and 24VDC circuits.
- 20mA operating current is constant across the operating range.
- Input voltages are polarity-sensitive and diode-protected.
- Relay is required to power or switch 12V systems that draw more than 1 Amp via the internal outputs of the MTC.
- Works with MTC and Siren 3 Pro
Specifications:
- Box Dimensions: 1"H x 4"W x 5"L WT: 0.5 lbs
- UPC: 857331007150
