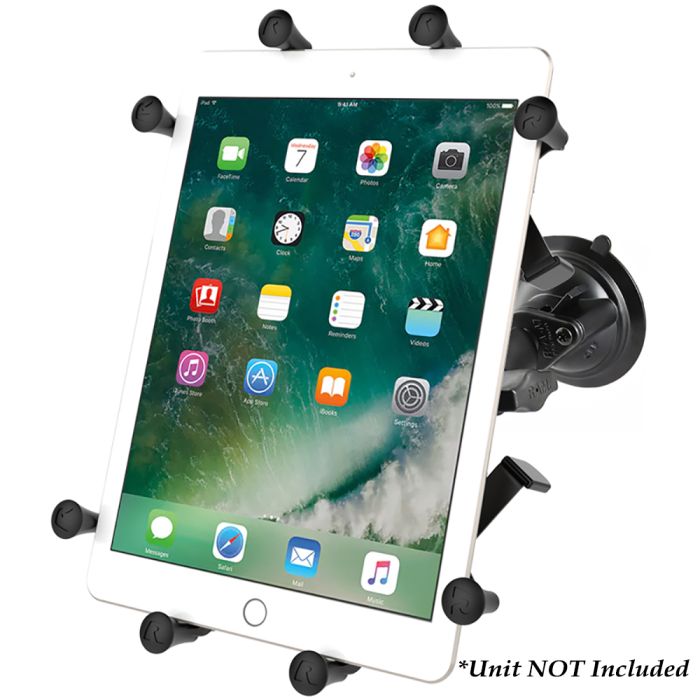

RAM Mount Twist-Lock Suction Cup Mount w/Universal X-Grip Cradle for 10" Large Tablets
Twist-Lock™ Suction Cup Mount w/Universal X-Grip® Cradle for 10" Large Tablets
The RAM-B-166-UN9U consists of a 3.3" diameter suction cup twist lock base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 10" tablets. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
- Minimum Width = 6.25"
- Maximum Width = 8.1"
- Depth = 0.875"
Features:
- Spring loaded cradle expands and contracts for perfect fit of your tablet
- Rubber coated tips will hold your tablet firm and stable
- Socket technology allows for multiple adjustment angles and articulation of your tablet
- Easy access grip knobs, located on the back of the cradle for quick release of your tablet
- Multiple mounting access points on the back of the cradle
- Additional support keeper at the bottom of the cradle
- Full access to all ports
- Lifetime warranty
Material:
Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite
Note:
The "U" in the part number reflects product packaged in poly bag.
