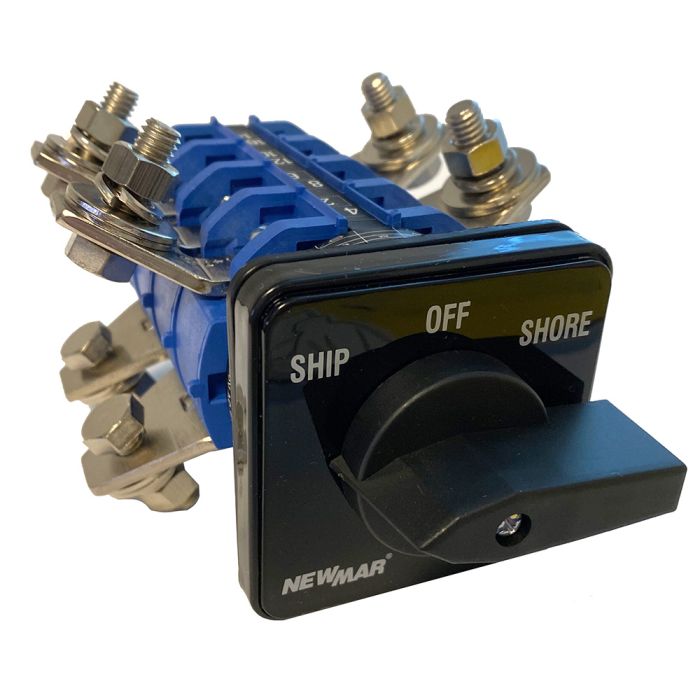

Newmar SS Switch - 15 AC Selector Switch MPN: SS SWITCH15

SS Switch - 15 AC Selector Switch

This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.

The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.

Features:

• Maybe rear-mounted in a panel with a thickness of up to 1/4”
• May be configured as a 63 amp, 4 pole switch

Specifications:

• Amperage @ 115/230V: 126
• Number of Poles: 2
• Switch Positions: 2 + “OFF”
• Standard Plate Markings: SHIP-OFF-SHORE
• Depth Dimensions: 4 in.

Specifications:

• Box Dimensions: 6"H x 7"W x 11"L WT: 2.3 lbs
