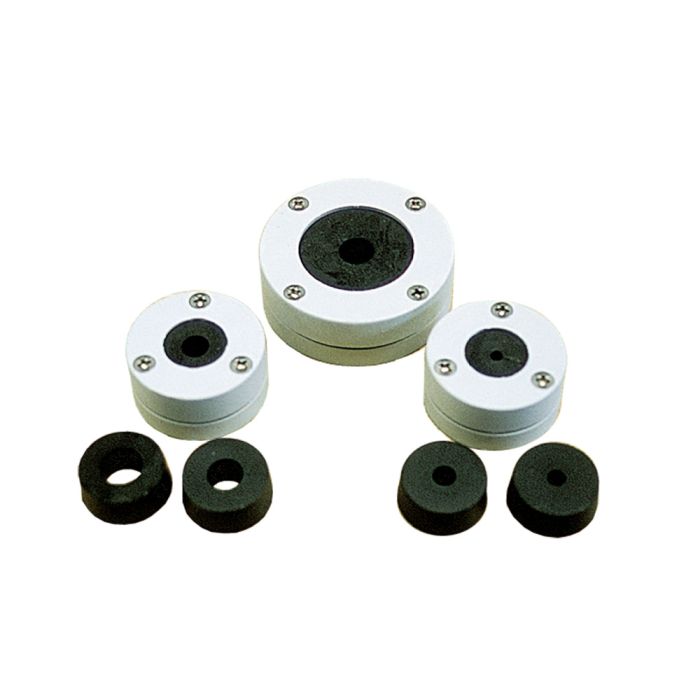

Newmar CCX-T Thru-Dex Fitting

CCX-T Thru-Dex Fitting

This waterproof fitting's entry hole is pre-drilled in seal with a slit edge allowing feed through of cable with a factory-installed connector attached. One CCX fitting is required for each cable.

Features:

• Create a 100% waterproof seal when routing cables through decks and bulkheads
• Entry hole predrilled in seal with a slit to edge
• Allowing installation or removal with the connector still attached
• Rugged weatherproof nylon housing with neoprene seal

Specifications:

• Cable Diameter Range (inches): .18-.35
• Max Connector Diameter (inches): .83

Specifications:

• Type: Deck Seal
• Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs
