Newmar BX-3 Junction Box MPN: BX-3

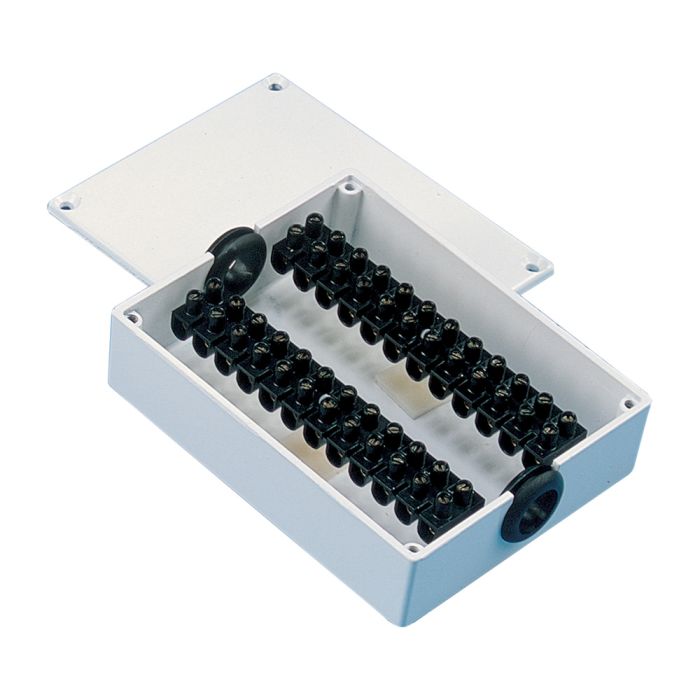

BX-3 Junction Box

This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.

Features:

• IP rating 54 – “Splashproof”
• Rugged cast aluminum box with white enamel finish
• Metal box reduces electrical interference
• Easy wiring access through multiple grommeted cable entries
• Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box

Specifications:

• Number of Connector Strips: 2
• Positions per Strip: 11
• Max Wire Gauge: 14
• Max Amps (per position): 10
• Cable Entries: 2
• Cable Diameter: 0.59 in.
• Box Size: 4.7 x 3.7 x 1.3 in.
• Box Size: 11.9 x 9.4 x 3.3 cm

Specifications:

• Type: Junction Box
• Box Dimensions: 2"H x 6"W x 9"L WT: 0.7 lbs
