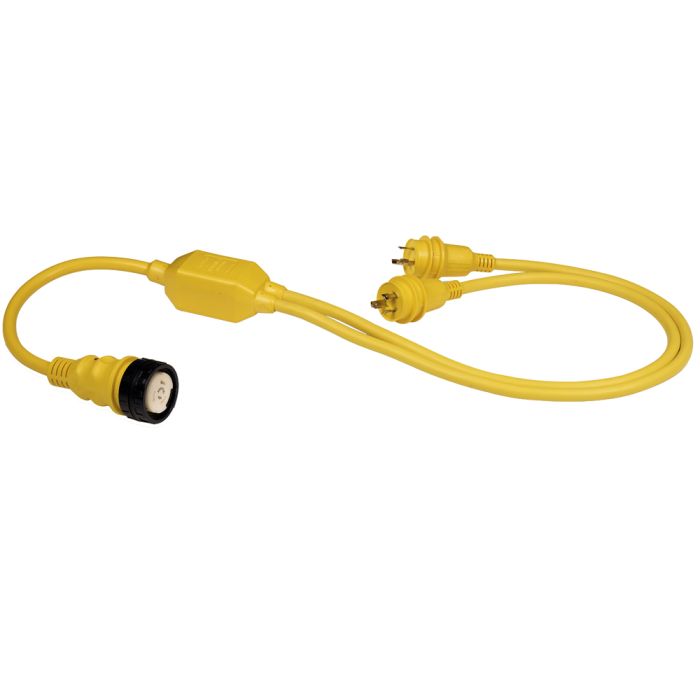

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable MPN: RY504-2-30

Reverse "Y" Adapter

The Reverse "Y" Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.

Boat Side: Female Connector

• 50A 125/250V

• w/Sealing Collar System

• Attaches to boat inlet or cordset

• 2-30A 125V

• Locking

• Attaches to dockside receptacle or cordset

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Y-Adapter
• Box Dimensions: 5"H x 12"W x 13"L WT: 7.4 lbs
• UPC: 093344501357
