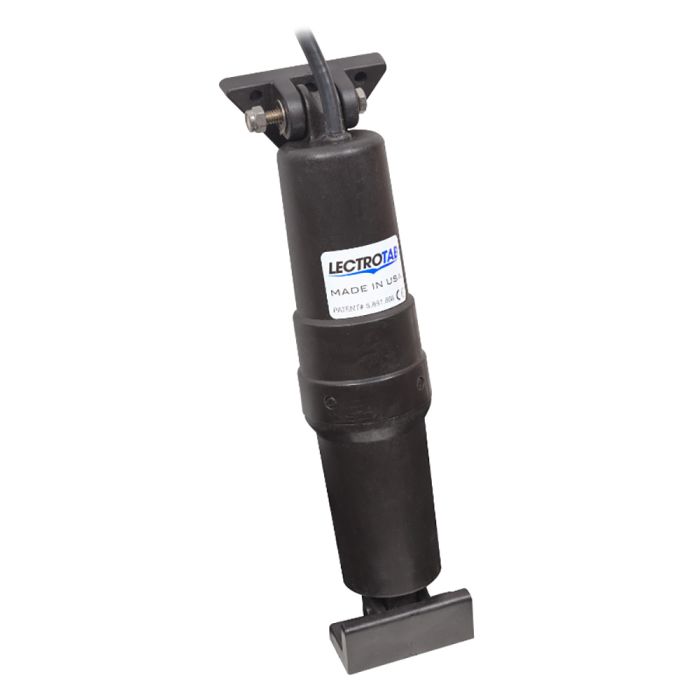

Lectrotab 12 V Short Trim Tab Actuator - 23 Cable MPN: S-BK-16

12 V Short Trim Tab Actuator - 23' Cable

Ideal for limited vertical height applications such as swim platforms, Lectrotab short trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.

The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The short actuator incorporates either a standard or low profile transom mounting bracket.

Features:

• Short actuator perfect for swim platform or limited vertical height applications
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length  - 23' (7 M)
• Actuator Vertical Height - 10" (254 mm)
• Upper Mounting Bracket - Low Profile
• Lower Mounting Bracket - Standard

*Sold as an Individual
