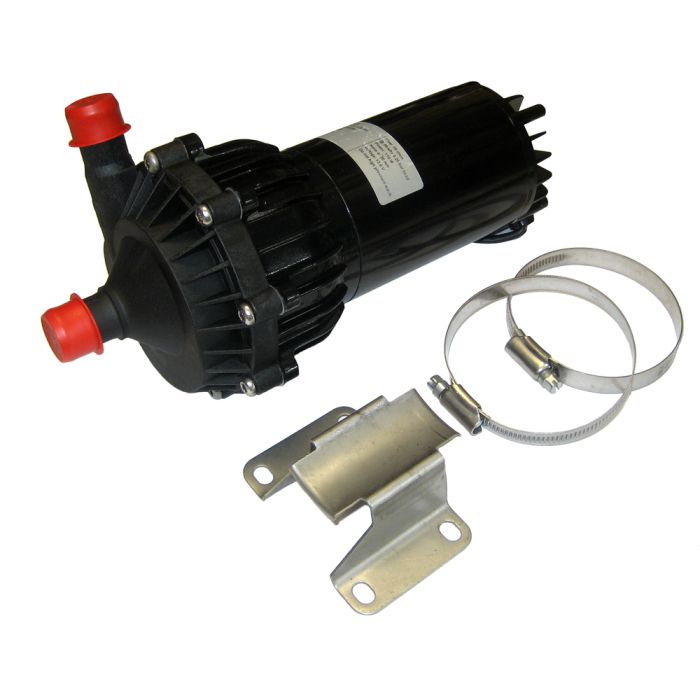

Johnson Pump CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet MPN: 10-24750-09

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

• System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar

• Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water

• Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor

• Dry running: 30 minutes

• Dimensions: 244mm L x 120mm W x 150mm H

• Weight: 6.6lbs

• Capacity: 17.2 GPM

• Ports: 3/4"

Specifications:

• Gallons Per Minute: 17.2 GPM
• Volts: 12v
• Box Dimensions: 6"H x 8"W x 11"L WT: 6.7 lbs
• UPC: 7330717013172
