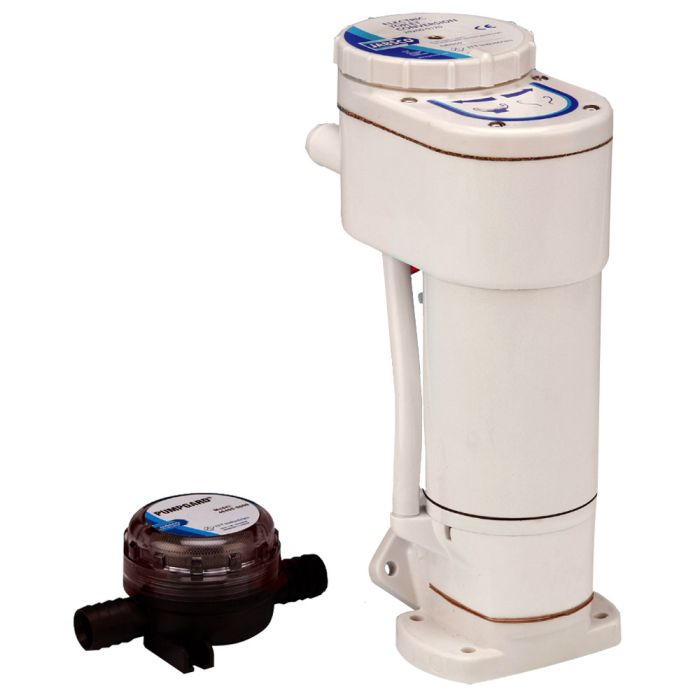

Jabsco 12V Electric Conversion Kit MPN: 29200-0120

Electric Conversions

Features:

• Directly replaces manual pump assembly

• Easy to Install

• Simple to operate

• Dual action control allows water level to be varied

• Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes

• Suitable for use in above or below waterline installations

• Built in macerator

• Meets EN50081-2 for Electro Magnetic Compatibility (EMC)

• Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection

• Self priming up to 0.6m(2ft)

• Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface

• Typical power consumption is less than 1.0 amp hour(12 Volt)

Specifications:

• Type: Misc
• Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs
• UPC: 671880520935
