Humminbird AS-ETH-5PGL 5 Port Ethernet Switch MPN: 411850-1

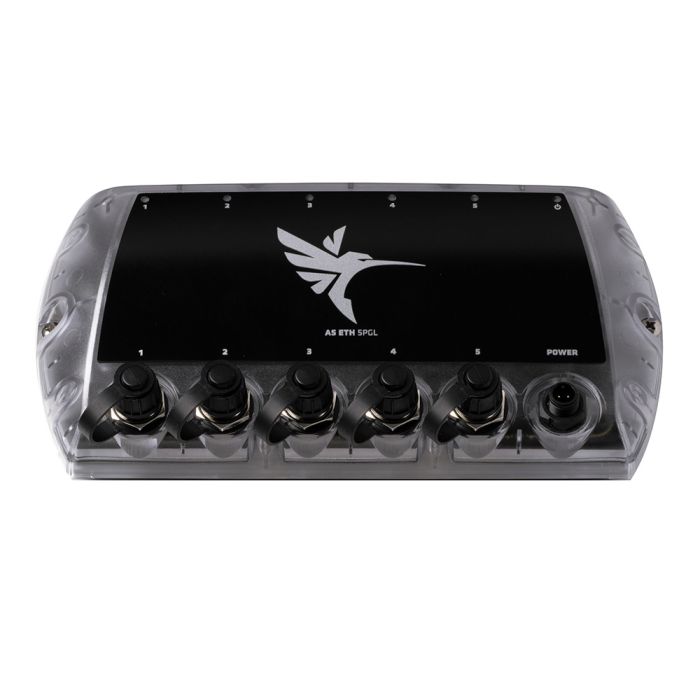

AS-ETH-5PGL 5 Port Ethernet Switch

This Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected.

Features:

• Connect up to five Humminbird fish finders and other compatible Ethernet devices for data sharing across the network.
• Expand your network's capacity by up to 20 devices by linking additional switches together (sold separately).
• Compatible with all APEX, SOLIX, HELIX G4N, and HELIX G3N fish finder models.
• Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection
• Amber Connection Light: HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
• Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
• Amber Power Light: Connected to power
• Additional Ethernet cables are required to connect devices to this switch. AS EC QDE connectors will also be required to connect compatible HELIX models to the Ethernet switch.
• Includes: Ethernet switch, power cable, mounting hardware
• 1-Year Limited Warranty

Specifications:

• Box Dimensions: 4"H x 8"W x 10"L WT: 1.75 lbs
• UPC: 082324057410
