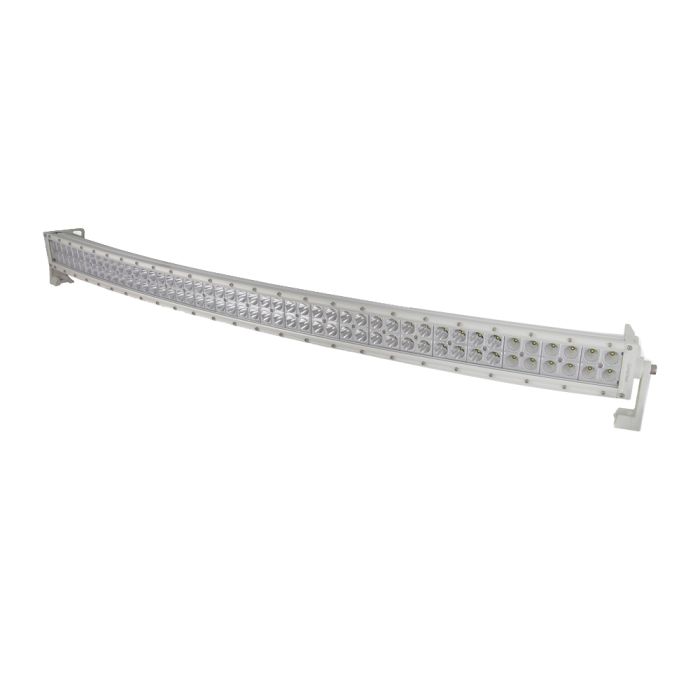

HEISE Dual Row Marine Curved LED Light Bar - 42" MPN: HE-MDRC42

Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W
• (80-3W CREE LEDs)
• Raw Lumens: 19200
• LUX at 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 41 inches
• Brackets Turned Outward – 43.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 42"
• Housing: White
• Voltage - Input Range (Volts): 10-30v
• Box Dimensions: 5"H x 8"W x 45"L WT: 13 lbs
• UPC: 086429348282
