Faria Euro Black 2" Fuel Level Gauge - Metric MPN: 12802

Euro Black 2" Fuel Level Gauge - Metric

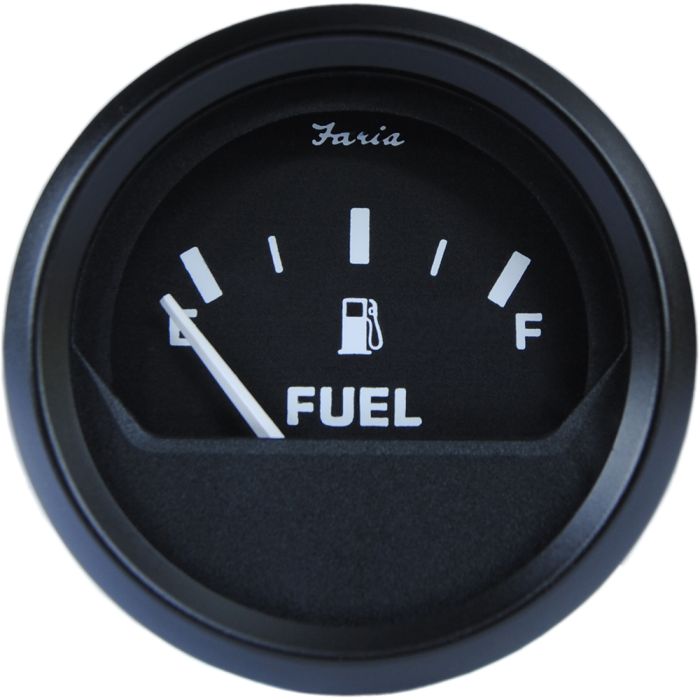

Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• Anti-scratch glass lens
• 12 VDC negative ground
• Perimeter-lighted Black dial
• Can be adapted for 24 VDC systems

Factory P/N GP9357

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Voltage - Input Range (Volts): 12/24 V
• Gauge Size: 2"
• Box Set: No
• Gauge Type: Fuel Level
• Series: Euro Black
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
• UPC: 759266128026
