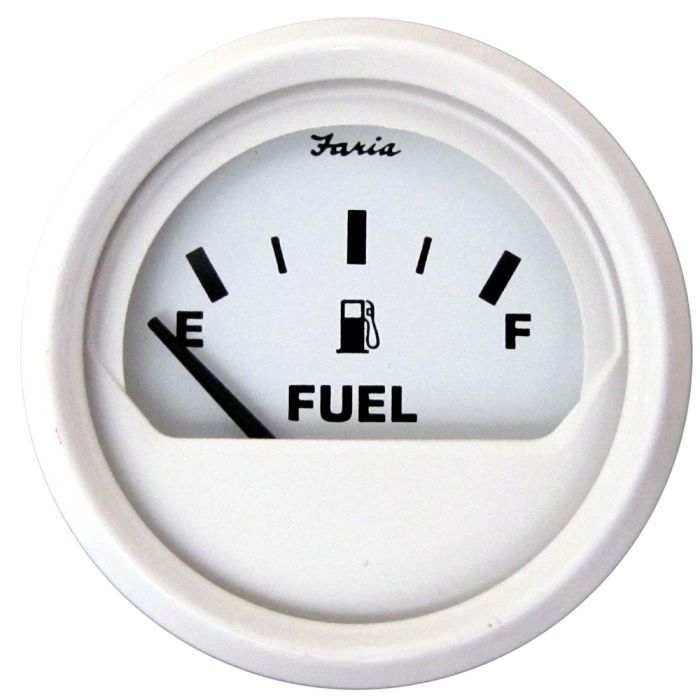

Faria Dress White 2" Fuel Level Gauge (E-1/2-F) MPN: 13101

Dress White 2" Fuel Level Gauge (E-1/2-F)

Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• 240 to 33 OHM
• Anti-scratch glass lens
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Factory P/N GP9389

*Sold as an Individual

**Gauge Cover not Included

Specifications:

• Gauge Type: Fuel Level
• Series: Dress White
• Voltage - Input Range (Volts): 12/24 V
• Gauge Size: 2"
• Box Set: No
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
• UPC: 759266131019
