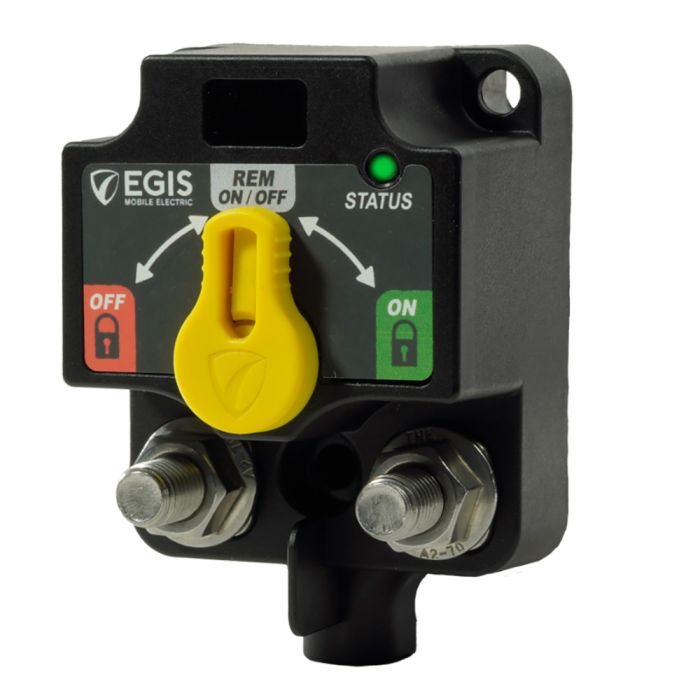

Egis XD Single LVD (Low Voltage Disconnect) w/Knob - Tinned Wires
[8710-1700]
XD Single Low Voltage Disconnect with Knob - Tinned Wires Features: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal... Read More
In stock
- SKU
- WTR-114208
$166.99
XD Single Low Voltage Disconnect with Knob - Tinned Wires
Features:
- Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
- Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing
- Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal
- Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing
- LED Indicator Provides Helpful Diagnostics
- Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs
- UPC: 850067590132
