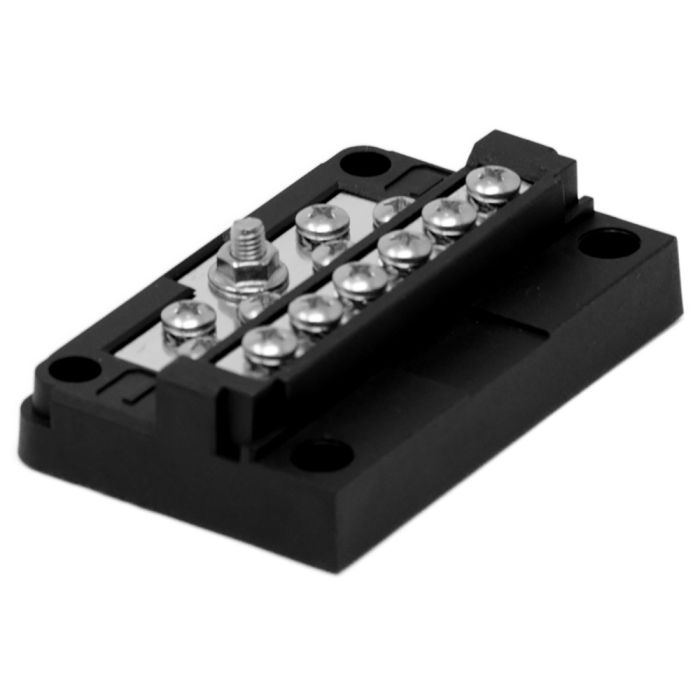

Egis RT Screw Terminal 12 Circuit Dual Lever Bus Bar MPN: 8030

RT Screw Terminal 12 Circuit Dual Lever Bus Bar

This Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.

Applications:

• The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
• RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
• Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 12
• Output Terminal Connection Ring Terminal Size: M4 / (#8)

Focal Features:

Robust Materials For Harsh Environments

All attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.

Seamlessly Integrates With RT Fuse Blocks

It can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint.
