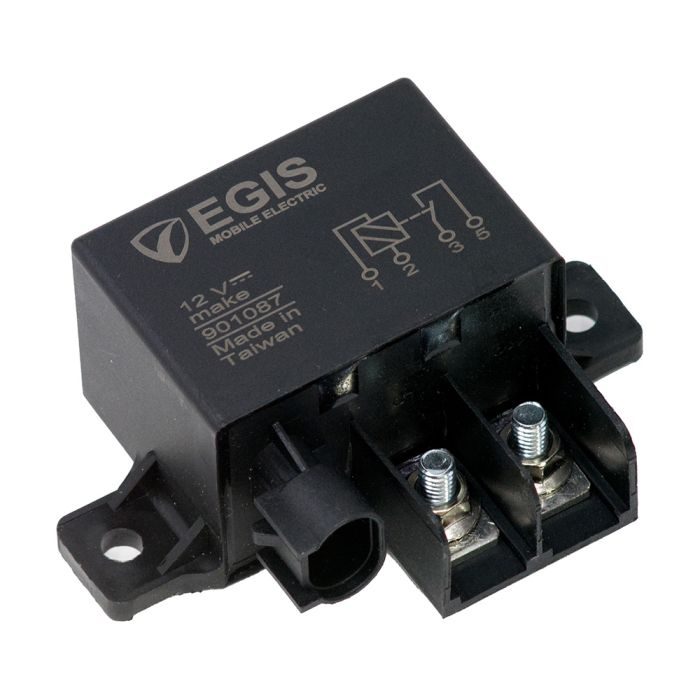

Egis Relay 12V 150A w/Resistor MPN: 901087

Relay 12V 150A with Resistor

This is an automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.

Features:

• Delphi Metripak connector built-in to the enclosure (sealed enclosure)

Specifications:

• Continuous Current @85C (Amps): 180
• Intermittent Current @85C (Amps): 240
• Minimum Operate Voltage (VDC): 7.2
• On-State Current Draw @12V (mA): 325
• Release Voltage (VDC): 2.2
• Switching Current @13.5 VDC (Amps): 300
