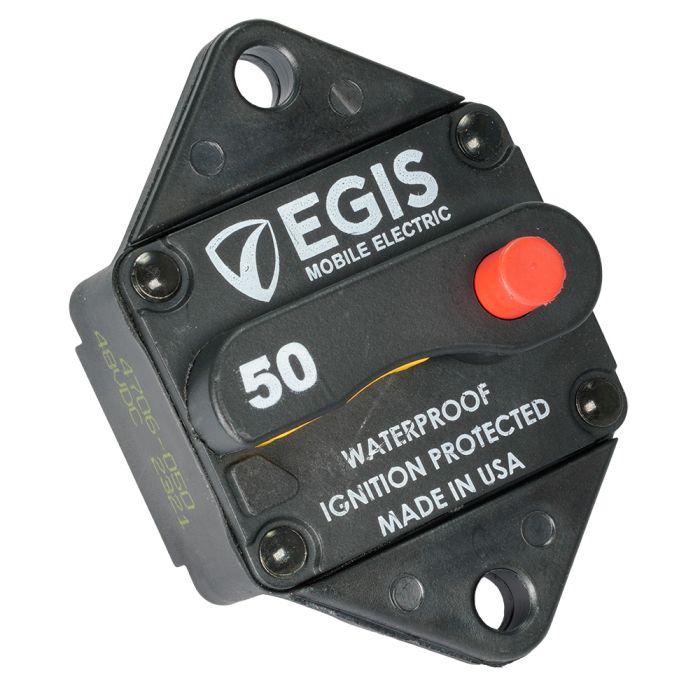

Egis 50A Panel Mount Circuit Breaker - 285 Series MPN: 4706-050
50A Panel Mount Circuit Breaker - 285 SeriesThis 50A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheat...
50A Panel Mount Circuit Breaker - 285 Series
This 50A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4 Year Warranty - Egis stands behind their product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 50
- Max Voltage: 48
- Cycling Endurance: 6,000
- Interrupt Current @16 VDC (Amps): 5,000
- Interrupt Current @28 VDC (Amps): 3,000
- Ingress Protection Rating: IP67
Focal Features:
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temperature rating for all installation locations.
Panel Mount Flange
Provides rear / front panel installation options.
Stainless Steel Hardware / KEPS Locking Nuts
Corrosion and vibration resistant for harsh environment applications.
Proudly Made in the USA
Made in the USA of high quality components.
