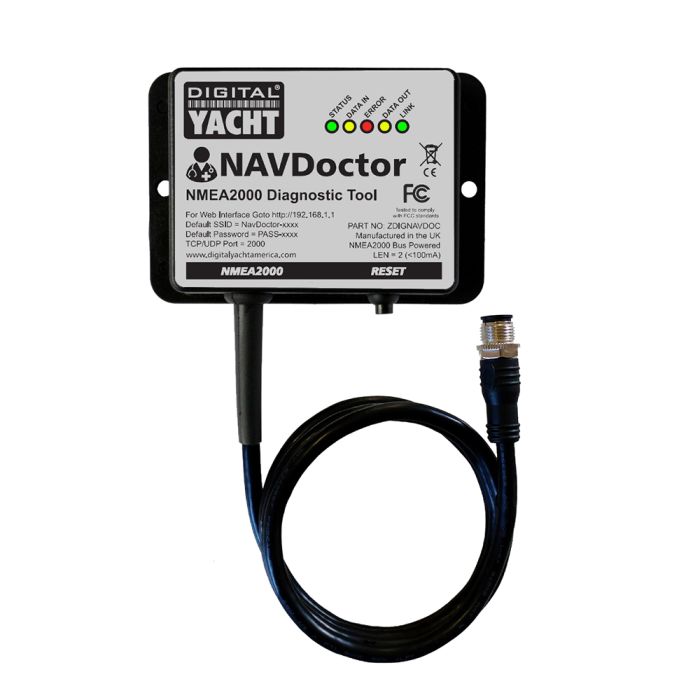

Digital Yacht NAVDoctor NMEA Network Diagnostic Tool MPN: ZDIGNAVDOC

NAVDoctor NMEA Network Diagnostic Tool

NMEA 2000 networks are used extensively for interfacing marine electronic products. It’s based on a robust Canbusarchitecture, but one bad device, cable or termination can have a detrimental effect on performance. Fault finding can be time consuming and tricky.

NAVDoctoris a portable NMEA 2000 network diagnostic tool/tester which quickly allows you to check and diagnose the NMEA 2000 network. It combines the functionality of existing NMEA 2000 display programs and test equipment into a single, cost effective, simple plug ‘n play box.

It’s self powered from the network and creates a local wifipoint for a mobile phone, tablet or PC to connect. Once connected, you simply access functions through a web browser so there’s no complicated software to install.

NAVDoctoris an essential tool for every marine electronics technician or installer and alsooffers the capability of printing a network health check certificate to validate an installation and improve customer service.

Features:

• No special Apps or software required –built-in web interface
• Works on any mobile device; iOS, Android, Windows, Mac, etc
• Connect wirelessly and view data through a web browser
• Lists all devices on the network
• Displays all PGNs on the network
• Drill down into a particular PGN and decode/display its data
• Display and log the RAW NMEA 2000 data
• Check the network health, voltages, bus load, error frames, etc.
