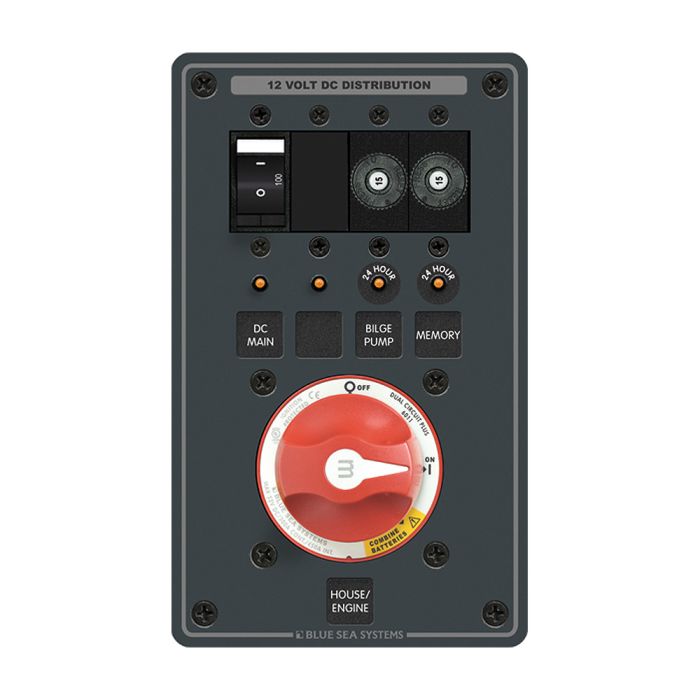

Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus MPN: 8686

m-Series Dual Circuit Plus PN 6011


(1) 100A C-Series Flat Rocker Circuit Breaker
(2) 15A Push Button Thermal Circuit Breakers

• Designed for twin engine configurations

• Provides 24 hour circuit protection

• Provides main DC circuit protection in addition to high ampere load protection

• Protects electronics from sags and spikes caused by engine cranking

• Allows emergency cross connect between isolated battery banks

• Isolates the Engine circuit from the House circuit

• Simplifies battery switch operation

• Allows independent battery discharge

• Addition of an Automatic Charging Relay automates charging both batteries

• Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Box Dimensions: 5"H x 7"W x 12"L WT: 2 lbs
• UPC: 632085086862
