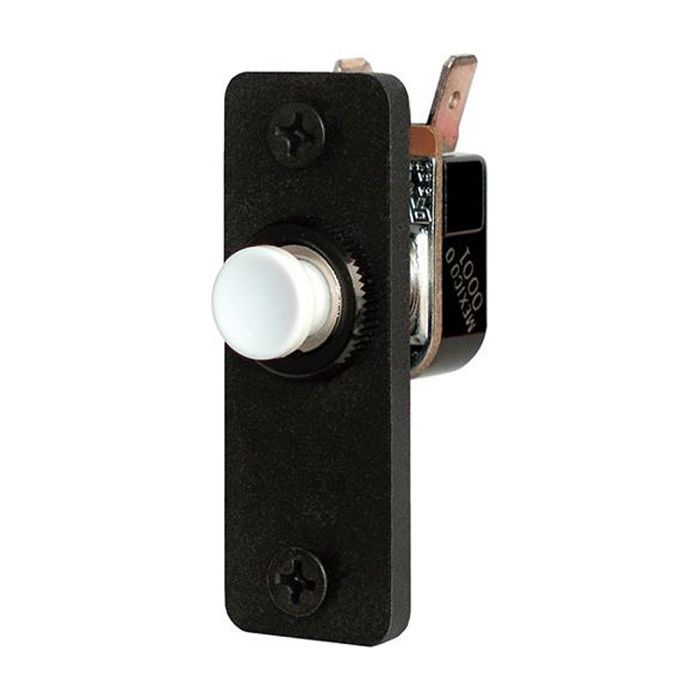

Blue Sea 8200 Push Button Panel Switch
Panel SwitchPN:8200Type:Push ButtonPole / Throw:SPSTAction ( ) = momentary:OFF - (ON)Features:Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that...
Panel Switch
| PN: | 8200 |
| Type: | Push Button |
| Pole / Throw: | SPST |
| Action ( ) = momentary: | OFF - (ON) |
Features:
- Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than ON-OFF or different pole configuration separate from circuit protection
- All panel switches mount in Blue Sea Systems toggle type circuit breaker panels
- Supplied with mounting adapter for standard 5/8" circuit breaker mounting hole
- Nickel-plated brass and phenolic non-corrosive construction
| Specifications | |
| Rating 250V AC | 3 Amperes |
| Rating 125V AC | 6 Amperes |
| Rating 32V DC | 6 Amperes |
| Terminal Size | 0.25" (6.35mm) |
| Terminal Type | Quick Connect Tab |
| Actuator Color | White |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs
- UPC: 632085082000
