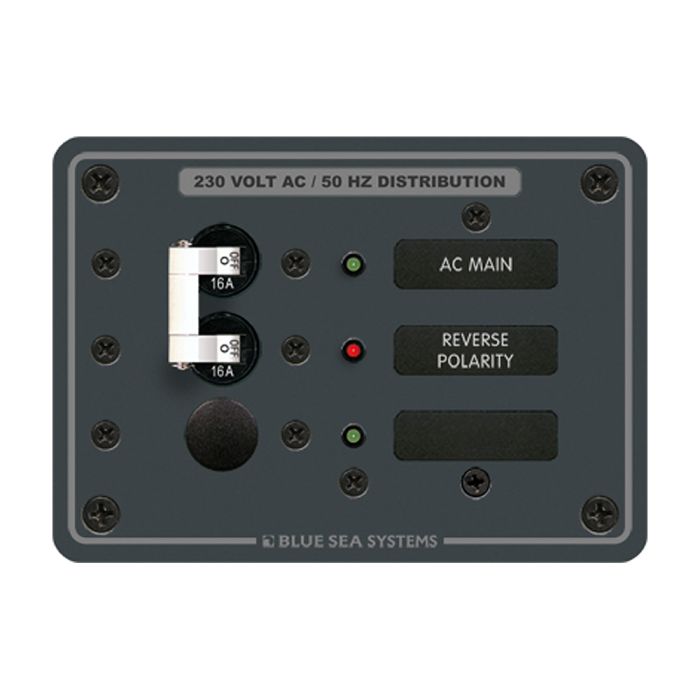

Blue Sea 8129 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 1 Position MPN: 8129

$137.99
Availability: Out of stock
SKU:
CWR-20702
230V AC Main + Branch A-Series Toggle Circuit Breaker PanelPN: 8129White Switches(1) 16A Double Pole Circuit Breaker InstalledFeatures:230VRed reverse polarity indicating LED All hot, neutral and...

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8129
White Switches


  • (1) 16A Double Pole Circuit Breaker Installed



  • Features:
    • 230V
    • Red reverse polarity indicating LED
    • All hot, neutral and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 50 Amperes
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual Labels available

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Max Breaker Quantity: 1
    • AC/DC: AC
    • Voltage: 230v
    • Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs
    • UPC: 632085081294

    Quick Guide (pdf)
    Owner's Manual (pdf)
