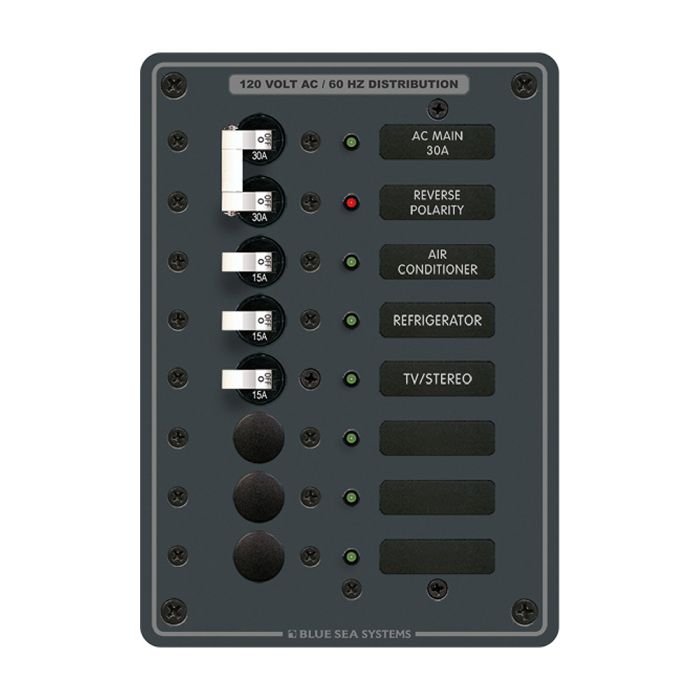

Blue Sea 8027 AC Main +6 Position Breaker Panel - White Switches MPN: 8027

8027 AC Main +6 Position Breaker Panel - White Switches

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 6
• Nominal Voltage: 120v AC
• Height: 7.5"
• Width: 5.25"

Included:

• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (7) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red
• (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
• (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 6
• AC/DC: AC
• Voltage: 120v
• Box Dimensions: 5"H x 7"W x 12"L WT: 2 lbs
• UPC: 632085080273
