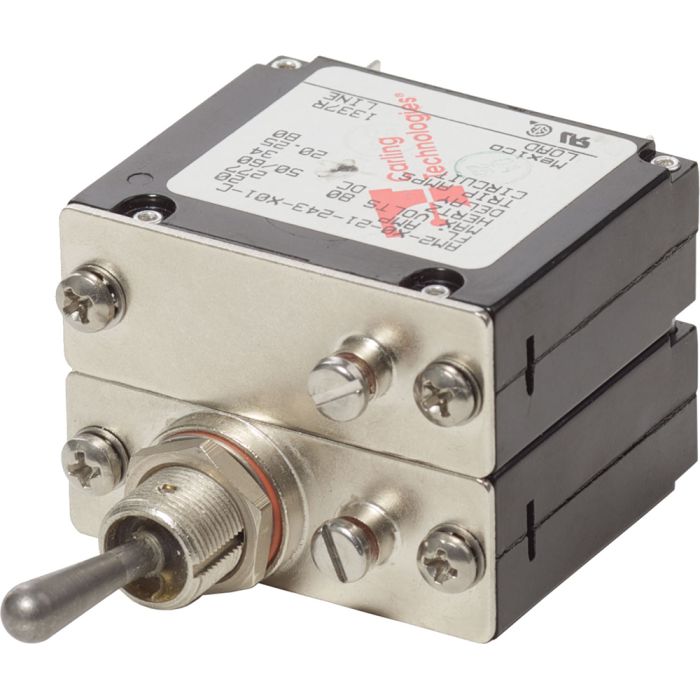

Blue Sea 7313 COTS Military Grade A-Series 20 Amp MPN: 7313

$77.99
Availability: Out of stock
SKU:
CWR-78671
7313 COTS Military Grade A-Series 20 AmpMay be suitable for use when military specifications are required under CFR 46.Specifications:Amperage: 20AActuator Style: Metal TogglePoles: 2Max Voltage: 277V...

7313 COTS Military Grade A-Series 20 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

  • Amperage: 20A
  • Actuator Style: Metal Toggle
  • Poles: 2
  • Max Voltage: 277V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - Trip Free
  • Interrupt Capacity: 1500 A AC, 7500A DC
  • Min Operating Temp: -40°C
  • Max Operating Temp: 85°C
  • Mounting Boss: 1/2-32 Hex Nut SS
  • Mounting Nut Torque: 30"-lb
  • Screw Terminal Torque: 14"-lb
  • Switching Cycles: 6000 Electrical/4000 Mechanical
  • Terminal Screw: #10-32 SS
  • Weight: 0.13lb (0.06 kg)
  • UL 1077

Specifications:

  • Amperage: 20a
  • Box Dimensions: 2"H x 2"W x 4"L WT: 0.4 lbs
  • UPC: 632085173135
