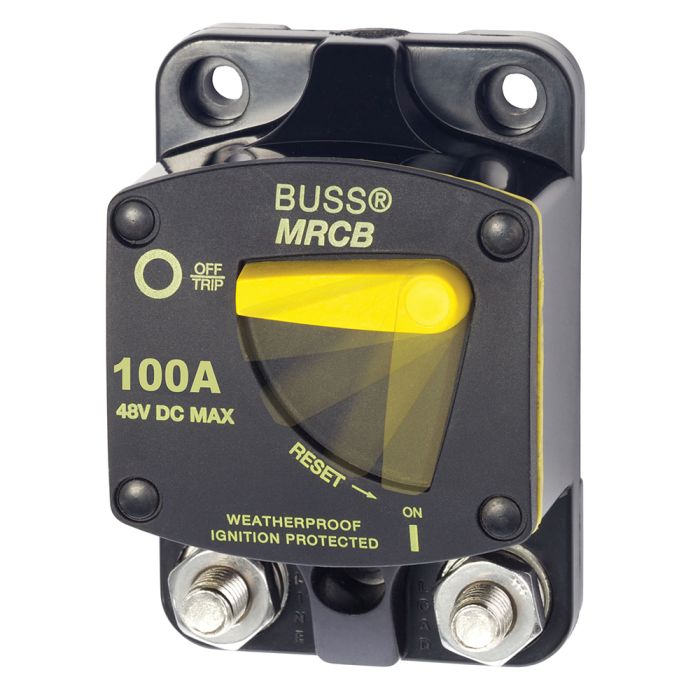

Blue Sea 7144 187 - Series Thermal Circuit Breaker - 100Amp MPN: 7144

187 - Series Thermal Circuit Breakers - Surface Mount

100 Amp Circuit Breaker

PN:  7144

Features:

• Combines switching and circuit protection into a single device

• All components meet SAE J1171 external ignition protection requirements

• Clear, single lever operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Waterproof

• Recessed mounting holes for clean appearance

• Large clearance around terminal studs accept heavy gauge wire lugs

• Robust 5/16 terminals provide high torque connections

• Large lever with vertical/horizontal orientation provides indication of trip status

• Ignition protected - safe for installation aboard gasoline powered boats

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 100a
• Box Dimensions: 2"H x 3"W x 8"L WT: 0.2 lbs
• UPC: 632085171445
