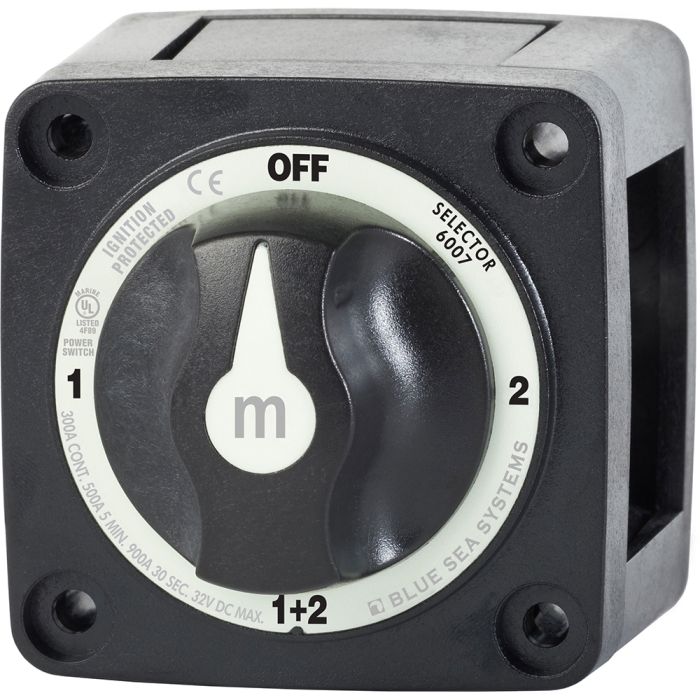

Blue Sea 6007200 Battery Switch Mini - 4 Position - Black MPN: 6007200
6007200 - Blackm-Series (Mini) Battery Switch SelectorMake before break contact design allows switching between battery banks without power interruptionSelectorSwitches battery bank 1 or battery bank ...
6007200 - Black
m-Series (Mini) Battery Switch Selector
Make before break contact design allows switching between battery banks without power interruption
Selector
- Switches battery bank 1 or battery bank 2 or both to a single load using one switch
Features:
- Ignition protected - Safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Label with international ON/OFF legends
- Removable key or knob remains positively retained
- ICON label set included for circuit identification
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Box Dimensions: 3"H x 4"W x 7"L WT: 0.65 lbs
- UPC: 632085600723
Owner's Manual (pdf)
