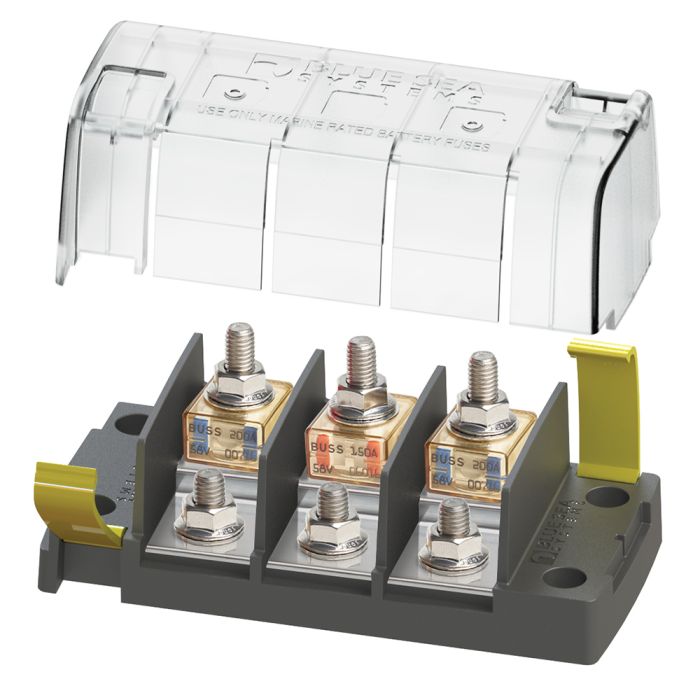

Blue Sea 5194 MRBF Surface Mount 3 Circuit Fuse Block - Independent Source

[5194]

Surface Mount 3 Circuit Fuse Block - Independent Source Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection The independent source fuse block (5194) is ideal for 3 output battery chargers The common source fuse block (5196) provides 3 loads from a single source Clip-on cover insulates terminal connections Versatile wiring options allow all... Read More

In stock

SKU: WTR-64352

$89.99

*Free Shipping

Secure Pay

Expert Advice

Fuse Blocks & Fuses

View All Fuse Blocks & Fuses

Free Shipping On Orders Over $99 Sitewide - U.S. Only

Surface Mount 3 Circuit Fuse Block - Independent Source

Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
The independent source fuse block (5194) is ideal for 3 output battery chargers
The common source fuse block (5196) provides 3 loads from a single source
Clip-on cover insulates terminal connections
Versatile wiring options allow all wires to come out a single side
Label recesses for easy circuit identification
One-piece stainless flange nuts ensure safe and secure connections

Specifications

Ignition Protected: Yes
Maximum Amperage: 240 per circuit
Maximum Voltage: 58v DC
Maximum Torque: 100 in-lb
Terminal Stud Size: M8 (5/16"-18)
