Blue Sea 3113 - SMS Panel Enclosure w/6 Blank Circuits MPN: 3113

$187.99
Availability: In stock
SKU:
CWR-65583
3113 - SMS Panel Enclosure with 6 Blank CircuitsThe 3113 panel enclosure is built for main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit bre...

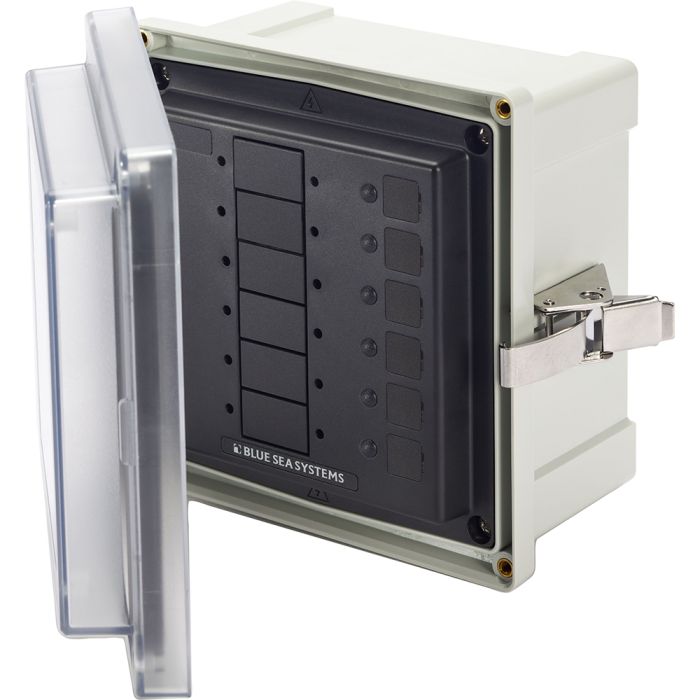

3113 - SMS Panel Enclosure with 6 Blank Circuits

The 3113 panel enclosure is built for main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers

Technical Specifications:

  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)

In the Box:

  • 3123 Enclosure
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Box Dimensions: 6"H x 10"W x 10"L WT: 2.8 lbs
  • UPC: 632085031138
