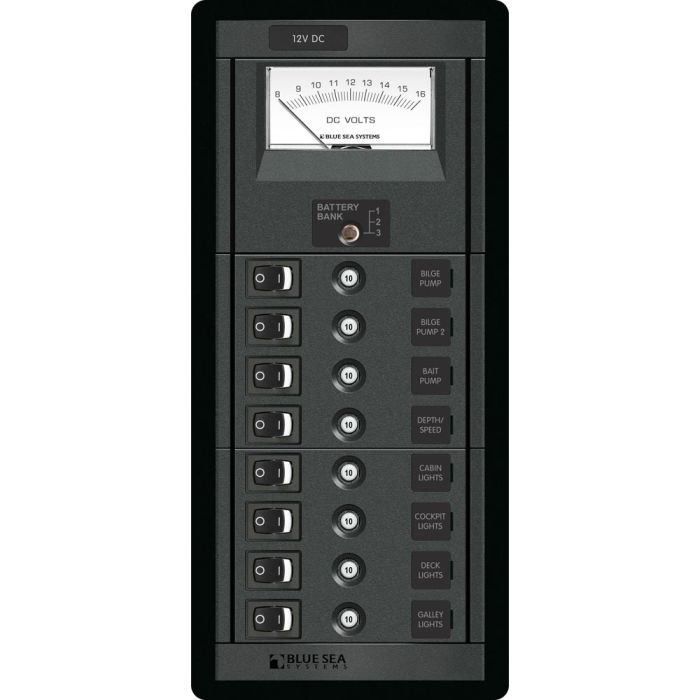

Blue Sea 1463 8 Position Switch CLB + Meter Vertical MPN: 1463

0 Review
$335.99
Availability: In stock
SKU:
CWR-57224
8 Position Switch CLB + Meter VerticalFeatures:Available with voltmeters and ammetersPanels with meters include a toggle switch to monitor voltage on up to three battery banksIncludes 4205-Square Form...

8 Position Switch CLB + Meter Vertical

Features:

  • Available with voltmeters and ammeters
  • Panels with meters include a toggle switch to monitor voltage on up to three battery banks
  • Includes 4205-Square Format Label Set


Specifications:
  • Positions: 8
  • Nominal Voltage: 12V DC
  • Maximum Amperage*: 80A per bus
  • Height: 10.75" (273.05mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.50" (88.9mm)
  • Weight: 3.66lb (1.66kg)


* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: DC
  • Box Dimensions: 5"H x 10"W x 13"L WT: 3 lbs
  • UPC: 632085014636

Quick Guide (pdf)
Owner's Manual (pdf)
