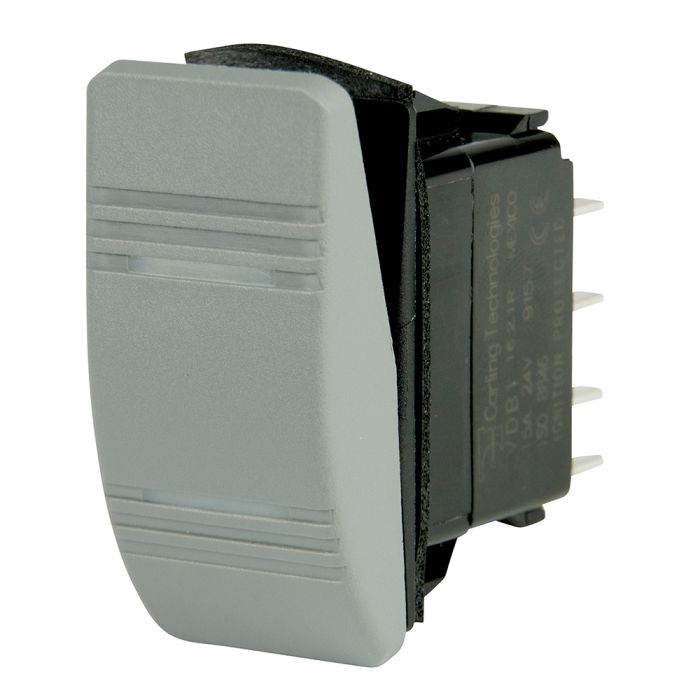

BEP DPDT Contura Switch - 2-Amber LEDs - Gray - ON/ON MPN: 1001812

DPDT Contura Switch - 2-Amber LEDs - Gray - ON/ON

Double pole, double throw switch turns two of four circuits on at the same time. Common applications include hallway style light switching and switching between batteries, shunts, or current transformers for multiple measurments in a single meter. Contura switches are rated to IP66, high-pressure wash resistant. Recommended for replacements in waterproof electrical panels with rocker switches to ensure waterproof integrity. The black and gray switches and covers are interchangeable with similar switches used as original equipment on many common boat types.

Features:

• Nominal voltage 12V/24V DC
• Rated for 20A at 12V DC, 15A at 24V DC
• 1/4" blade terminals
• Includes two Amber LEDs
• Snap-in mounting to fit panel hole 1.45" x .83" into panels .093" to .187" thick

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Throw/Pole: DPDT
• Color: Grey
• Action: On/On
• Box Dimensions: 2"H x 3"W x 5"L WT: 0.1 lbs
• UPC: 870216046518
