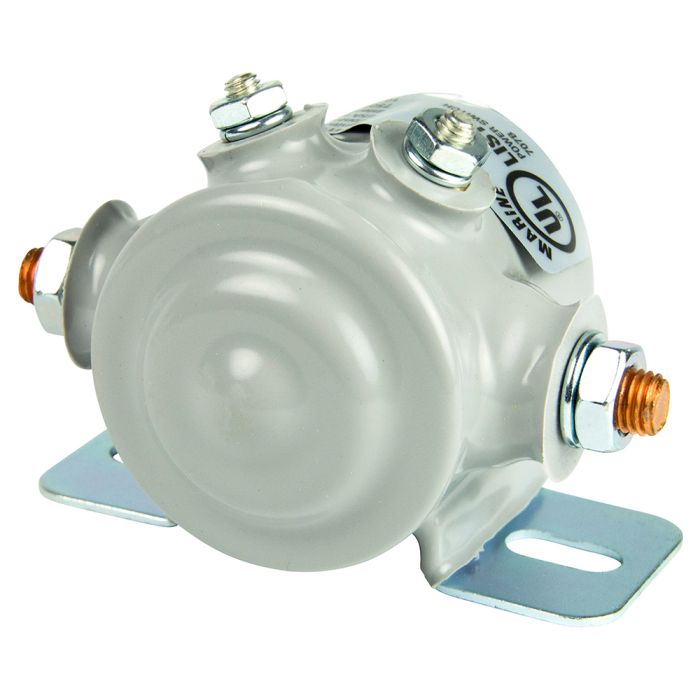

BEP 65A PVC Coated Continuous Duty Solenoid MPN: 1002205

65A PVC Coated Continuous Duty Solenoid

Remotely switch high amperage loads with a low amperage on-off switch.

Features:

• Continuous duty, 65A at 12V DC
• Intermittent rating 100A: 10 seconds
• Copper #10-32 thread signal terminals
• Copper 5/16”-24 thread contact terminals
• PVC coated steel case
• Bracket mounting holes 5/16” x 19/32”, 2-13/64” on centers
• UL and CE approved
• Same as Cole Hersee part number 24117-01

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Box Dimensions: 3"H x 4"W x 7"L WT: 0.9 lbs
• UPC: 870216046891
